HiTA TECHNOLOGY COMPANY, LTD.
16-BIT ETHERNET
|

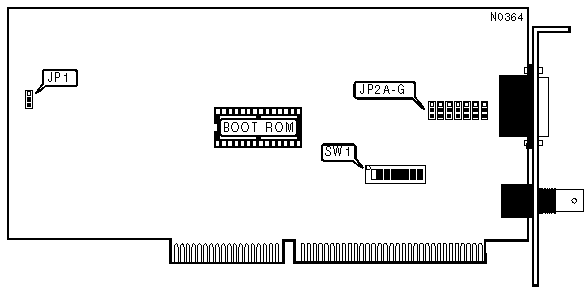

NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG58A/U 50ohm coaxial DIX transceiver via DB-15 port |
|
Boot ROM |
Available |
|
COMPATIBILITY MODE | ||
|
Setting |
JP1 | |
| » |
Disabled |
Pins 1 & 2 closed |
|
Enabled |
Pins 2 & 3 closed | |
|
Note:Compatibility mode is provided for systems that are not 100% timing compatible. If a system is not 100% timing compatible, or if you are experiencing difficulties when booting, enable this option. The following is a list of some of the systems known to be timing incompatible: AST Premium 286, NEC PowerMate 1, Compaq 286 Portable, Hewlet-Packard Model ES 12, Tandy 3000, and systems using Chips and Technologies or VLSI chipsets. | ||
|
CABLE TYPE | ||
|
Type |
JP2A - JP2G | |
| » |
RG58A/U 50ohm coaxial |
Pins 2 & 3 closed |
|
DIX transceiver via DB-15 port |
Pins 1 & 2 closed | |
|
Note:This card uses the older DIX standard and cannot be used with the newer AUI standard. | ||
|
INTERRUPT REQUEST | |||
|
IRQ |
SW1/1 |
SW1/2 | |
|
2/9 |
On |
Off | |
| » |
3 |
Off |
On |
|
4 |
On |
Off | |
|
5 |
On |
On | |
|
I/O BASE ADDRESS | |||
|
Address |
SW1/3 |
SW1/4 | |
| » |
300-31Fh |
On |
On |
|
320-33Fh |
Off |
On | |
|
340-35Fh |
On |
Off | |
|
360-37Fh |
Off |
Off | |
|
BOOT ROM ADDRESS | ||||
|
Address |
SW1/5 |
SW1/6 |
SW1/7 | |
|
C000-C3FFh |
On |
On |
On | |
|
C400-37FFh |
Off |
On |
On | |
| » |
C800-CBFFh |
On |
Off |
On |
|
CC00-CFFFh |
Off |
Off |
On | |
|
D000-D3FFh |
On |
On |
Off | |
|
D400-D7FFh |
Off |
On |
Off | |
|
D800-DBFFh |
On |
Off |
Off | |
|
DC00-DFFFh |
Off |
Off |
Off | |
|
BOOT ROM | ||
|
Setting |
SW1/8 | |
| » |
Disabled |
Off |
|
Enabled |
On | |
