Card Type	Ethernet
Data Bus	Parallel
Maximum network Rate	10Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Not available

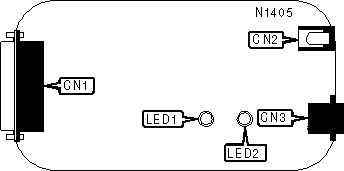

CONNECTIONS
Function	Label	Function	Label
Parallel port	CN1	Unshielded twisted pair port	CN3
DC power port	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	Blinking	Data is transmitted/received
LED1	Green	Off	Data is not being transmitted/received
LED2	Red	On	Power is on
LED2	Red	Off	Power is off
