IBM CORPORATION
PC NETWORK ADAPTER (BASEBAND)
|
NIC Type |
Baseband |
|
Transfer Rate |
Unspecified |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
Twisted pair (8-wire) |
|
Boot ROM |
Not Available |
|

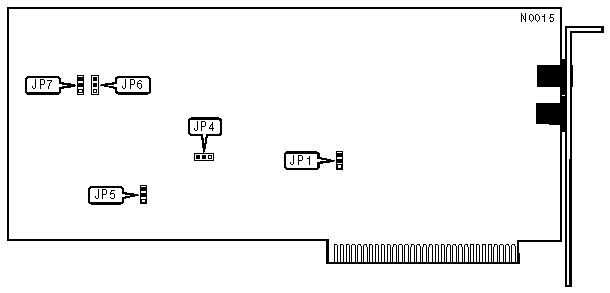

INTERRUPT REQUEST | ||
|
IRQ |
JP1 | |
| » |
2 |
Pins 1 & 2 closed |
|
3 |
Pins 2 & 3 closed | |
|
I/O ADDRESS | ||
|
Address |
JP4 | |
| » |
620h |
Pins 1 & 2 closed |
|
628h |
Pins 2 & 3 closed | |
|
BASE MEMORY ADDRESS | ||
|
Address |
JP5 | |
| » |
CC00h |
Pins 1 & 2 closed |
|
DC00h |
Pins 2 & 3 closed | |
|
ROM BIOS | ||
|
Setting |
JP7 | |
| » |
Enabled |
Pins 1 & 2 closed |
|
Disabled |
Pins 2 & 3 closed | |
|
BOOT ROM | ||
|
Setting |
JP6 | |
| » |
Disabled |
Pins 1 & 2 closed |
|
Enabled |
Pins 2 & 3 closed | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
The DMA channel is permanently fixed at 3. If two adapters will be installed into one station then disable the ROM BIOS on the second adapter. |
