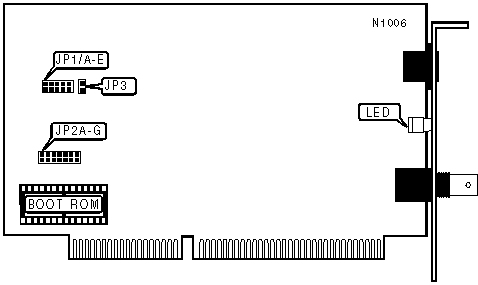

INVISIBLE SOFTWARE, INC.
2000A/FD
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|
BASE I/O ADDRESS SELECTION |
|||
|
Address |
JP1/A |
JP1/B |
|
|
» |
300h |
Open |
Open |
|
320h |
Closed |
Open |
|
|
340h |
Open |
Closed |
|
|
360h |
Closed |
Closed |
|
|
INTERRUPT SELECTION |
|||||||||
|
IRQ |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
JP2/E |
JP2/F |
JP2/G |
JP2/H |
|
|
» |
3 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
2 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
|
4 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
|
5 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
|
10 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
|
11 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
|
12 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
BOOT ROM CONFIGURATION |
||
|
Setting |
JP1/E |
|
|
» |
Disabled |
Open |
|
Enabled |
Closed |
|
|
ROM ADDRESS |
|||
|
Address |
JP1/C |
JP1/D |
|
|
» |
C800h |
Closed |
Open |
|
C000h |
Open |
Open |
|
|
D000h |
Open |
Closed |
|
|
D800h |
Closed |
Closed |
|
|
BUS COMPATABILITY |
||
|
Setting |
JP3 |
|
|
» |
Normal AT bus timing |
Open |
|
|
Alternative bus timing |
Closed |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED |
Green |
Blinking |
Data is being transmitted/received |
|
LED |
Green |
Off |
Data is not being transmitted/received |
