NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus/Star
Wiring Type	Unshielded twisted pair AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial
Boot ROM	Available

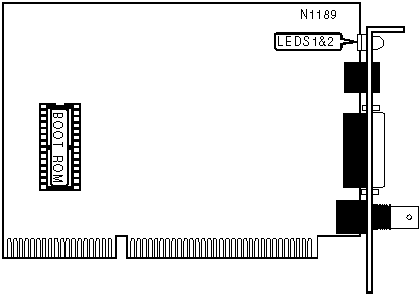

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	Polarity is normal for 10Base-T
LED1	Yellow	Off	Polarity is reversed for 10Base-T
LED2	Green	On	10Base-T connection is good
LED2	Green	Off	10Base-T connection is broken
