NIC Type	ATM (OC-3c)
Maximum Onboard Memory	128KB RAM
Boot ROM	Not available
Network Transfer Rate	155Mbps
Topology	Star
Wire Type	Fiber optic cable
Data Bus	EISA
Card Size	Full height, half length

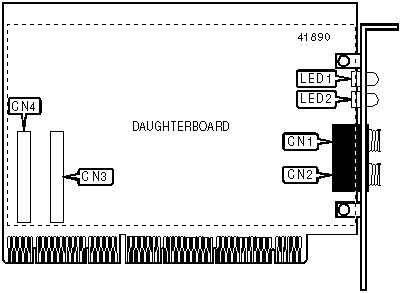

CONNECTIONS
Function	Label	Function	Label
Fiber optic SC cable connector	CN1	Daughterboard connectors	CN3
Fiber optic SC cable connector	CN2	Daughterboard connectors	CN4

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	Power is on
LED1	Yellow	Blinking	Driver is running
LED1	Yellow	Off	Power is off or card failed power-up self-test
LED2	Green	On	Network connection is good
LED2	Green	Off	Network connection is broken
