Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair (RJ-45) AUI, RG-58A/U 50ohm coaxial
Data Bus	8-bit ISA

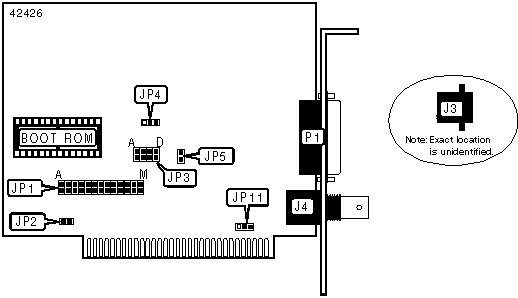

CONNECTIONS
Function	Label	Function	Label
RJ-45 connector	J3	External LED connector	JP2
BNC connector	J4	AUI connector	P1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Boot ROM disabled	JP5	Open
	Boot ROM enabled	JP5	Closed

BASE I/O ADDRESS SELECTION
Setting		JP1/A	JP1/B	JP1/C
»	300h	Closed	Closed	Closed
	320h	Closed	Closed	Open
	340h	Closed	Open	Closed
	360h	Closed	Open	Open

INTERRUPT SELECTION
IRQ		JP1/D	JP1/E	JP1/F	JP1/G	JP1/H	JP1/I
	2	Closed	Open	Open	Open	Open	Open
»	3	Open	Closed	Open	Open	Open	Open
	4	Open	Open	Closed	Open	Open	Open
	5	Open	Open	Open	Closed	Open	Open
	6	Open	Open	Open	Open	Closed	Open
	7	Open	Open	Open	Open	Open	Closed

DMA CHANNEL SELECTION
Channel	JP1/J	JP1/K	JP1/L	JP1/M
1	Closed	Open	Closed	Open
3	Open	Closed	Open	Closed

CABLE TYPE SELECTION
Type	JP4	JP11
AUI	Pins 2 & 3 closed	Pins 1 & 2 closed
BNC	Pins 1 & 2 closed	Pins 2 & 3 closed
Unshielded twisted pair	Unidentified	Unidentified

ROM ADDRESS SELECTION
Address		JP3/A	JP3/B	JP3/C	JP3/D
	C000h	Closed	Closed	Closed	Closed
	C400h	Open	Closed	Closed	Closed
»	C800h	Closed	Open	Closed	Closed
	CC00h	Open	Open	Closed	Closed
	D000h	Closed	Closed	Open	Closed
	D400h	Open	Closed	Open	Closed
	D800h	Closed	Open	Open	Closed
	DC00h	Open	Open	Open	Closed
