Card Type	Network Interface Card
NIC Type	Ethernet
Boot ROM	Available
Network Transfer Rate	10Mbps (half-duplex), 20Mbps (full-duplex)
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	16-bit ISA

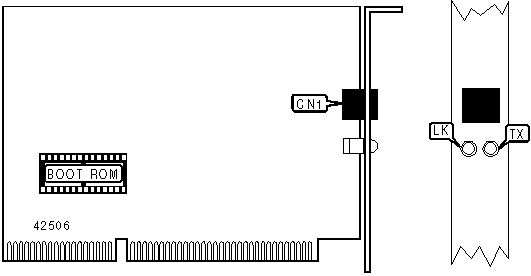

CONNECTIONS
Function	Label
RJ-45 UTP connector	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LK	Unidentified	On	UTP link is good
LK	Unidentified	Off	UTP link is broken
TX	Unidentified	Blinking	Data is being transmitted
TX	Unidentified	Off	Data is not being transmitted
