NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	32-bit EISA
Topology	Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Not available

CABLE TYPE

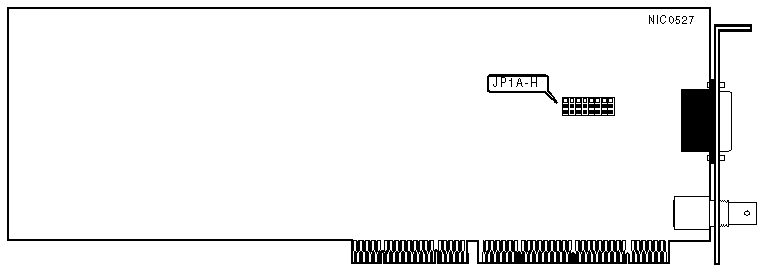

Type		JP1A - JP1H
»	RG--58A/U 50ohm coaxial	Pins 1 & 2 Closed
	AUI transceiver via DB-15 port	Pins 2 & 3 Closed

MISCELLANEOUS NOTES

The remaining options are set using the software provided with the card.
