Card Type	Network Interface Card
NIC Type	Token Ring
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	4/16Mbps
Topology	Star, Ring
Wiring Type	Shielded twisted pair Unshielded twisted pair
Data Bus	32-bit PCI

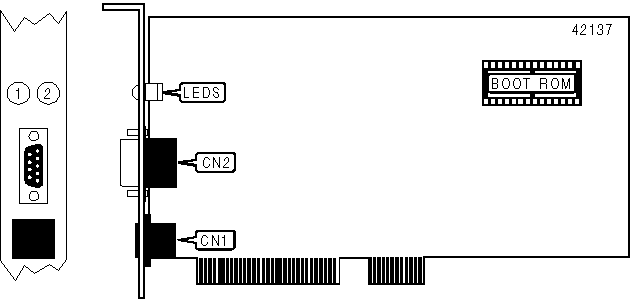

CONNECTIONS
Function	Label	Function	Label
UTP via RJ-45 connector	CN1	STP via 9-pin connector	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection is good
LED1	Green	Off	Network connection is broken
LED2	Yellow	On	Data is being transmitted/received at 4Mbps
LED2	Yellow	Off	Data is being transmitted/received at 16Mbps
