NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	Toshiba laptop internal expansion slot
Topology	Linear Bus
Wiring Type	RG-62A/U 93ohm coaxial
Boot ROM	Not Available

STANDBY MODE
Mode		SW1
»	Normal	Position 1
	Standby (low power)	Position 0

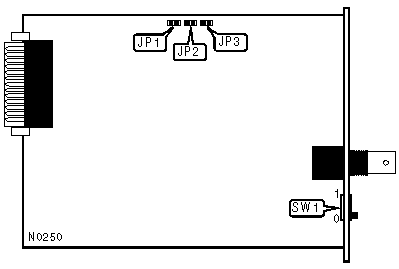

I/O BASE ADDRESS AND INTERRUPT REQUEST
Address	IRQ	JP1	JP2	JP3
280h	2	Closed	Closed	Open
300h	2	Open	Closed	Open
280h	3	Closed	Open	Closed
300h	3	Open	Open	Closed

MISCELLANEOUS NOTES

Software that is supplied with the card must be run in order to fully configure it.
