RACORE COMPUTER PRODUCTS, INC.
M8118 (REV.1.0)
|
NIC Type |
Token Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit MCA |
|
Topology |
Ring |
|
Wiring Type |
Shielded twisted pair Fiber optic cable |
|
Boot ROM |
Not available |
|

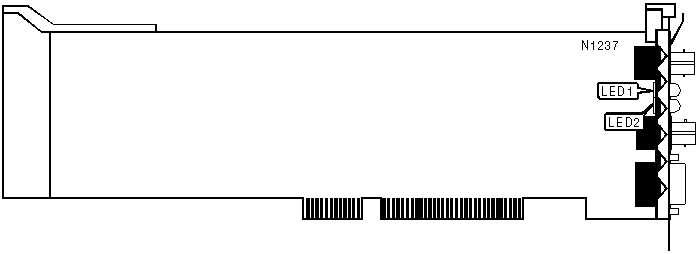

DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Network connection is good |
|
LED1 |
Off |
Network connection is broken |
|
LED2 |
On |
Card is inserted into the ring |
|
LED2 |
Off |
Card is not inserted into the ring |
