PURE DATA, LTD.
PDI8023PLUSII-16FL-SMA/PDI8023PLUSII-16FL-ST
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
Fiber optic cable |
|
Boot ROM |
Available |
|

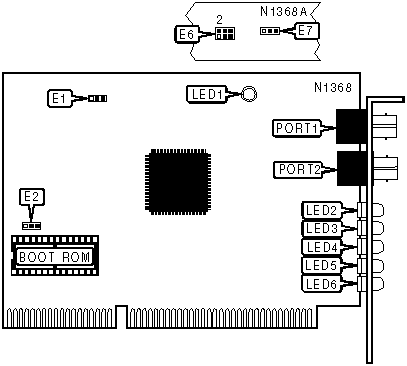

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
Receiving port |
Port1 |
Transmitting port |
Port2 |
|
EPROM CONFIGURATION |
|
|
Setting |
E1 |
|
Enabled |
Pins 1 & 2 closed |
|
Disabled |
Pins 2 & 3 closed |
|
ROM SIZE SELECTION |
|
|
Size |
E2 |
|
64KB |
Pins 1 & 2 closed |
|
128KB |
Pins 1 & 2 closed |
|
256KB |
Pins 2 & 3 closed |
|
SQE AND JABBER CONFIGURATION |
|||
|
SQE setting |
Jabber setting |
E6 |
|
|
» |
Enabled |
Enabled |
Pins 1 & 2 closed |
|
Disabled |
Disabled |
Pins 3 & 4 closed |
|
|
Disabled |
Enabled |
Pins 5 & 6 closed |
|
|
LOOPBACK CONFIGURATION |
|
|
Setting |
E7 |
|
Enabled |
Pins 2 & 3 closed |
|
Disabled |
Pins 1 & 2 closed |
|
DIAGNOSTIC LED(S) |
||
|
LED |
Status |
Condition |
|
LED1 |
Blinking |
Network collision has been detected |
|
LED1 |
Off |
Network collision has not been detected |
|
LED2 |
On |
Data is being transmitted |
|
LED2 |
Off |
Data is not being transmitted |
|
LED3 |
On |
Data is being received |
|
LED3 |
Off |
Data is not being received |
|
LED4 |
On |
Network connection is good |
|
LED4 |
Off |
Network connection is broken |
|
LED5 |
On |
Jabber has been detected |
|
LED5 |
Off |
Jabber has not been detected |
|
LED6 |
On |
Network collision has been detected |
|
LED6 |
Off |
Network collision has not been detected |
