Card Type	Token Ring
Data Bus	16-bit ISA
Maximum Network Rate	4/16Mbps
Topology	Ring
Wiring Type	Shielded twisted pair Unshielded twisted pair
Boot ROM	Unavailable

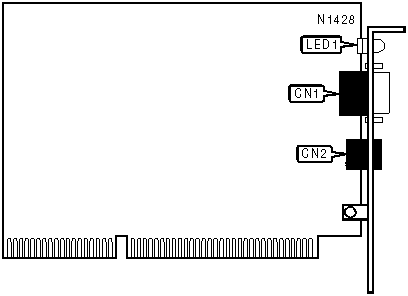

CONNECTIONS
Function	Label	Function	Label
Shielded twisted pair port	CN1	Unshielded twisted pair port	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	Network connection is good
LED1	Yellow	Off	Network connection is broken
