NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	PCMCIA Type III
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Not available

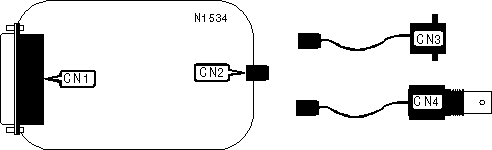

CONNECTIONS
Function	Label	Function	Label
Card connector	CN1	Unshielded twisted pair	CN3
Network interface connector	CN2	RG-58A/U 50ohm coaxial	CN4
