PARADISE SYSTEMS, INC.
N100RJ
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
256 kB RAM |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
10/100Mbps |
|
Topology |
Star, Linear Bus |
|
Wiring Type |
RJ-45 Unshielded twisted pair |
|
Data Bus |
32-bit PCI |
|

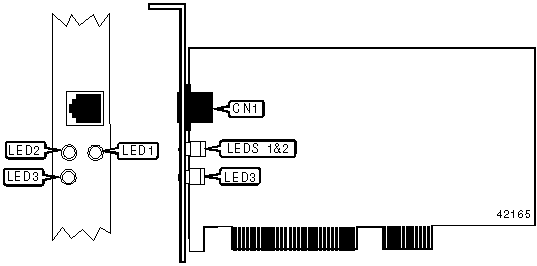

CONNECTIONS | |
|
Function |
Label |
|
RJ-45 UTP connector |
CN1 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Network connection is good |
|
LED1 |
Green |
Off |
Network connection is broken |
|
LED2 |
Green |
On |
Port is operating at 100 Mbps |
|
LED2 |
Green |
Off |
Port is not operating at 100 Mbps |
|
LED3 |
Green |
Blinking |
Data is being transmitted |
|
LED3 |
Green |
Off |
Data is not being transmitted |
