TULIP COMPUTERS
TNCC-32 CAT
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
32-bit EISA |
|
Topology |
Linear bus |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair
|
|
Boot ROM |
Not Available |
|
CONNECTIONS | |
|
Purpose |
Location |
|
SmartPort connector |
CN1 |
|
HUB expansion card connector |
CN2 |
|
FACTORY CONFIGURED SETTINGS | ||||||
|
Setting |
TR1 |
TR2 |
TR3 |
TR4 |
TR5 |
TR6 |
|
Normal operation |
Not installed |
Not installed |
Installed |
Installed |
Not installed |
Not installed |
|
Note:Interface selection for the TNCC-32 CAT adapter is done by means of manufacturer provided software. Do not reposition the terminating resistors. | ||||||

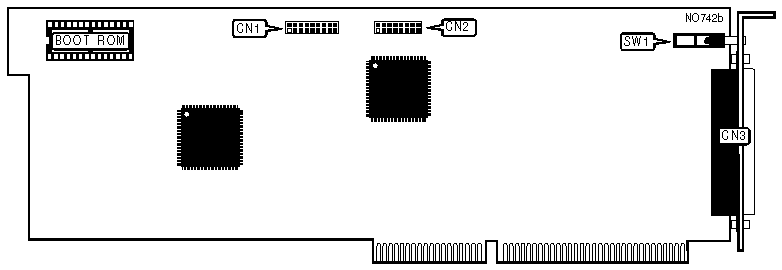

10Base-T HUB card-16
|
CONNECTIONS | |
|
Purpose |
Location |
|
HUB expansion card connector |
CN1 |
|
SmartPort connector |
CN2 |
|
DB-50 Harmonica HUB interface |
CN3 |
|
Port 1 crossover switch |
SW1 |

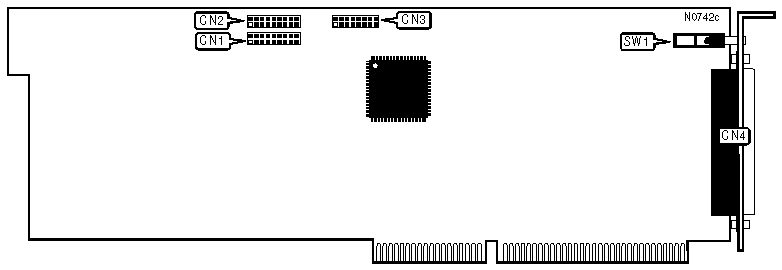

HUB expansion card
|
CONNECTIONS | |
|
Purpose |
Location |
|
Expansion card connector |
CN1 |
|
Master card connector |
CN2 |
|
SmartPort connector |
CN3 |
|
DB-50 Harmonica HUB interface |
CN4 |
|
Port 1 crossover switch |
SW1 |
|
MISCELLANEOUS TECHNICAL NOTE |
|
Note:The TNCC-32 connects to the 10Base-T HUB card or the HUB expansion card by means of cables provided by the manufacturer. Together, these cards interface via the 50-pin connector with a Harmonica 12-port external network HUB. |
