Card Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Available

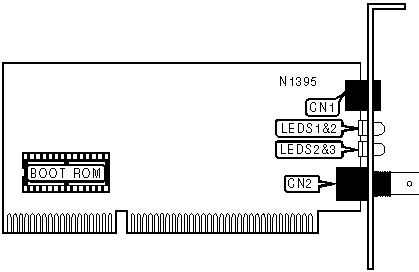

CONNECTIONS
Purpose	Location
Unshielded twisted pair	CN1
RG-58A/U 50ohm coaxial	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Power is on
LED1	Green	Blinking	Data is being transmitted
LED2	Yellow	On	Data is not being received
LED2	Yellow	Blinking	Data is being received
LED3	Orange	On	Collision is detected on network
LED3	Orange	Off	Collision is not detected on network
LED4	Red	On	10Base-T polarity is reversed
LED4	Red	Off	10Base-T polarity is not reversed
Note: The exact location of LED1 - LED4 is unidentified.
