NIC Type	Proprietary
Chip Set	Systran
Maximum Onboard Memory	8MB
Data Bus	EISA
Maximum Network Rate	150Mbps
Topology	Ring
Wiring Type	Fiber optic cable
Boot ROM	Not available

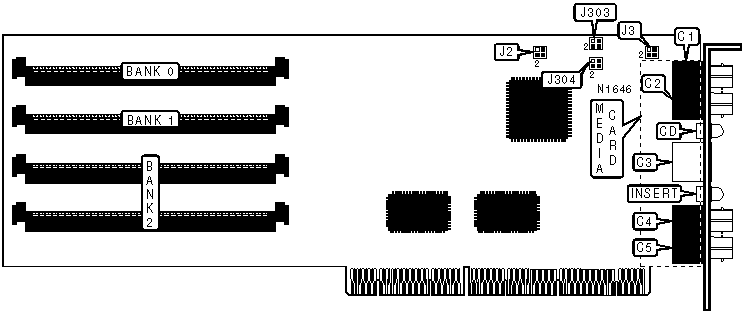

CONNECTIONS
Function	Label	Function	Label
Transmit line 1	C1	Receive line 1	C4
Transmit line 2	C2	Receive line 2	C5
Auxiliary connector	C3

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Use chassis ground	J3	Pins 2 & 4 closed
	Use signal ground	J3	Pins 1 & 3 closed
»	EEPROM write protect enabled	J303	Pins 2 & 4 closed
	EEPROM write protect disabled	J303	Pins 1 & 3 closed
»	EEPROM read protect enabled	J304	Pins 2 & 4 closed
	EEPROM read protect disabled	J304	Pins 1 & 3 closed

DRAM
Size	Bank 0	Bank 1	Bank 2
128KB	NONE	NONE	NONE
512KB	(1) 512KB x 9	NONE	NONE
1MB	(1) 512KB x 9	(1) 512KB x 9	NONE
2MB	(1) 512KB x 9	(1) 512KB x 9	(2) 512KB x 9
2MB	(1) 2MB x 9	NONE	NONE
4MB	(1) 2MB x 9	(1) 2MB x 9	NONE
8MB	(1) 2MB x 9	(1) 2MB x 9	(2) 2MB x 9

DRAM JUMPERS
Size	J2
128KB	Pins 2 & 4 closed
512KB	Pins 1 & 3 closed
1MB	Pins 1 & 3 closed
2MB	Pins 1 & 3 closed
2MB	Pins 1 & 3 closed
4MB	Pins 1 & 3 closed
8MB	Pins 1 & 3 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
INSERT	Green	On	Card is connected to the network
INSERT	Green	Off	Card is not connected to the network
CD	Green	On	Ring integrity good
CD	Green	Off	Ring integrity failed
