Card Type	Network Interface Card
NIC Type	TCNS
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	100Mbps
Topology	Star
Wiring Type	RG-58A/U 50ohm coaxial
Data Bus	EISA

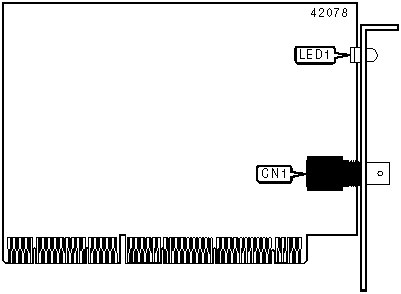

CONNECTIONS
Function	Label
RG-58A/U connector	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Red	On	Data is being transmitted/received
LED1	Red	Blinking	Network connection is broken
LED1	Red	Off	Data is not being transmitted/received

MISCELLANEOUS TECHNICAL NOTES

Note: Card is configured by software.
