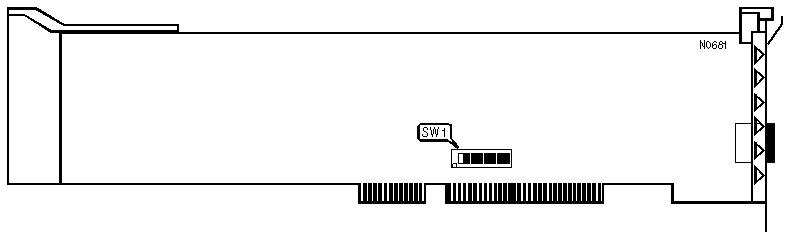

UNIDENTIFIED
DL/2
|
NIC Type |
Local Talk |
|
Transfer Rate |
230.4Kbps |
|
Data Bus |
16-bit MCA |
|
Topology |
Star |
|
Wiring Type |
Local Talk, PhoneNET or compatible |
|
Boot ROM |
Not available |
|
INTERRUPT SELECT |
||||
|
IRQ |
SW1/1 |
SW1/2 |
SW1/3 |
|
|
» |
IRQ5 |
Off |
Off |
On |
|
|
IRQ3 |
On |
Off |
Off |
|
|
IRQ4 |
Off |
On |
Off |
|
|
Disabled |
Off |
Off |
Off |
|
I/O ADDRESS CONFIGURATION |
|||||
|
Address |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
|
» |
240h |
On |
On |
Off |
On |
|
|
260h |
On |
On |
Off |
Off |
|
|
2A0h |
On |
Off |
On |
Off |
|
|
320h |
Off |
On |
On |
Off |
|
|
340h |
Off |
On |
Off |
On |
|
|
200h |
On |
On |
On |
On |
|
FACTORY CONFIGURED SETTINGS |
|
|
Switch |
Setting |
|
SW1/4 |
Off |
