NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear bus
Wiring Type	AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial
Boot ROM	Available

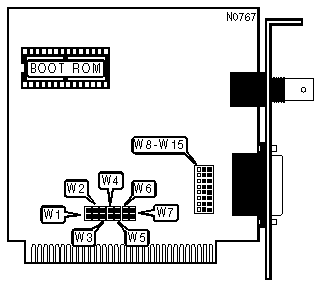

BOOT ROM
Setting		W1
»	Disabled	Open
	Enabled	Closed

CABLE TYPE
Type		W8 - W15
»	RG-58A/U 50ohm coaxial	Pins 1 & 2 closed
	AUI transceiver via DB-15 port	Pins 2 & 3 closed

INTERRUPT SELECT
IRQ		W4	W5	W6	W7
»	IRQ3	Closed	Open	Open	Open
	IRQ2	Open	Open	Open	Closed
	IRQ4	Open	Closed	Open	Open
	IRQ5	Open	Open	Closed	Open

I/O ADDRESS SELECT
Address		W2	W3
»	300h	Closed	Closed
	320h	Open	Closed
	340h	Closed	Open
	360h	Open	Open
