NIC Type:	Ethernet
Transfer Rate:	10Mbps
Data Bus:	32-bit LC processor direct slot (Apple)
Topology:	Linear Bus Star
Wiring Type	RG-58A/U 50ohm coaxial Shielded/Unshielded twisted pair
Boot ROM	Not Available

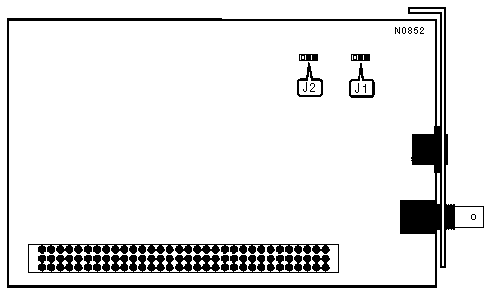

CABLE TYPE
Type	J1
RG-58A/U 50ohm coaxial	Pins 2 & 3 closed
Shielded/Unshielded twisted pair	Pins 1 & 2 closed

10BASE-T LINK STATUS
Setting	J2
10BASE-T hub selected	Pins 2 & 3 closed
Pre-10BASE-T hub selected	Pins 1 & 2 closed
Note:J2 only applies when twisted pair cable is being used.
