Device Type	Internal Tape Drive
Interface	SCSI
Format	QIC-3095
Sustained Transfer Rate	500KBPS 1MBPS (compressed)
Size	3.5 in. half height

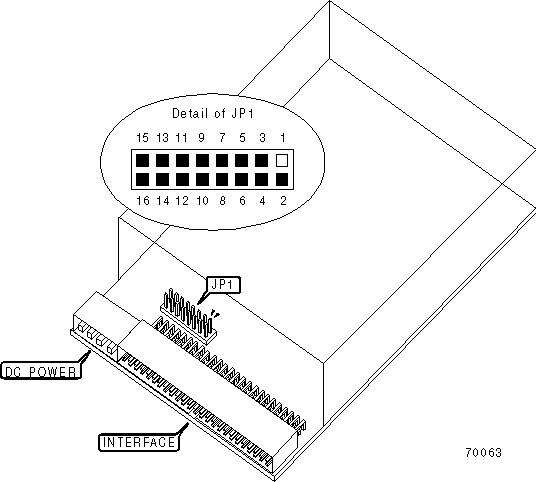

View	Bottom

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter. (Parity check enable/disable)	JP1/Pins 7 & 8	Unidentified
»	Factory configured - do not alter	JP1/Pins 9-12	Unidentified
»	Termination enabled	JP1/Pins 13 & 14	Closed
	Termination disabled	JP1/Pins 13 & 14	Open

DRIVE SELECT ID
Drive ID	JP1/Pins 1 & 2	JP1/Pins 3 & 4	JP1/Pins 5 & 6
0	Open	Open	Open
1	Closed	Open	Open
2	Open	Closed	Open
3	Closed	Closed	Open
4	Open	Open	Closed
5	Closed	Open	Closed
6	Open	Closed	Closed
7	Closed	Closed	Closed

TERMINATION POWER SELECTION
Setting		JP1/Pins 15 & 16
»	TERMPWR supplied by SCSI interface to drive	Open
	TERMPWR supplied by drive	Closed

MANUFACTURERS RECOMMENDED MEDIA
Tape	Capacity Without Compression	Capacity With Compression
3M TR4 (QIC-3095)	4GB	8GB
