TECMAR
WANGDAT 3100 DDS, WANGDAT 3200 DDS/DDS-DC
|
Device Type |
Internal Tape Drive |
|
Interface |
SCSI |
|
Format |
DDS DDS-DC (WangDAT 3200 only) |
|
Sustained Transfer Rate |
500KBPS |
|
Size |
3.5 in. half height 5.25 in. half height (with bezel) |
|
View |
Top |
|

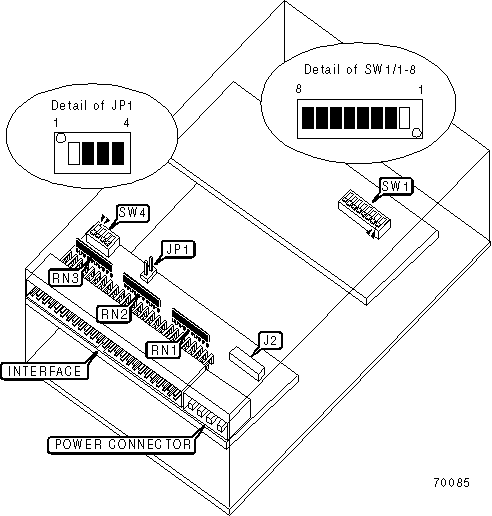

USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
J2 |
Unidentified |
| » |
Buffered mode software selectable |
SW1/1 |
Off |
|
Buffered mode not software selectable |
SW1/1 |
On | |
| » |
Compression enabled (not used on 3100) |
SW1/2 |
On |
|
Compression disabled (not used on 3100) |
SW1/2 |
Off | |
| » |
SCSI 2 mode enabled |
SW1/3 |
On |
|
SCSI 1 mode enabled |
SW1/3 |
Off | |
| » |
Prevent insertion and removal of CD’s by command or eject button |
SW1/4 |
Off |
|
Allow insertion and removal of CD’s by command or eject button |
SW1/4 |
On | |
| » |
Parity check enabled |
SW4/1 |
On |
|
Parity check disabled |
SW4/1 |
Off | |
|
TERMINATION | |||
|
Function |
RN1 |
RN2 |
RN3 |
|
Termination enabled |
Installed |
Installed |
Installed |
|
Termination disabled |
Not installed |
Not installed |
Not installed |
|
Note: ‘Installed’ means that a terminating resistor is installed at the prospective port, ‘Not installed’ means that a terminating resistor is not installed at the prospective port. | |||
|
DRIVE SELECT ID | ||||
|
Drive ID |
SW4/2 |
SW4/3 |
SW4/4 | |
|
0 |
Off |
Off |
Off | |
| » |
1 |
On |
Off |
Off |
|
2 |
Off |
On |
Off | |
|
3 |
On |
On |
Off | |
|
4 |
Off |
Off |
On | |
|
5 |
On |
Off |
On | |
|
6 |
Off |
On |
On | |
|
7 |
On |
On |
On | |
|
TERMINATION POWER SELECTION | ||
|
Setting |
JP1 | |
| » |
TERMPWR supplied by SCSI interface to drive |
Open |
|
TERMPWR supplied by drive |
Closed | |
|
MANUFACTURERS RECOMMENDED MEDIA | ||
|
Drive |
Tape |
Capacity Without Compression |
|
WangDAT 3100 DDS |
WangDAT 60 meter |
1.3 GB |
|
WangDAT 3100 DDS |
WangDAT 90 meter |
2.0 GB |
|
WangDAT 3100 DDS |
Maxell HS-4/60 |
1.3 GB |
|
WangDAT 3100 DDS |
Maxell HS-4/90 |
2.0 GB |
|
WangDAT 3100 DDS |
TDK DC4-60 |
1.3 GB |
|
WangDAT 3100 DDS |
TDK DC4-90 |
2.0 GB |
|
WangDAT 3100 DDS |
Fuji DG-90 |
2.0 GB |
|
WangDAT 3100 DDS |
JVC DF-90 |
2.0 GB |
|
WangDAT 3100 DDS |
KAO KD200 |
1.3 GB |
|
WangDAT 3200 DDS |
WangDAT 60 meter |
1.3 GB |
|
WangDAT 3200 DDS |
WangDAT 90 meter |
2.0 GB |
|
WangDAT 3200 DDS |
Maxell HS-4/60 |
1.3 GB |
|
WangDAT 3200 DDS |
Maxell HS-4/90 |
2.0 GB |
|
WangDAT 3200 DDS |
TDK DC4-60 |
1.3 GB |
|
WangDAT 3200 DDS |
TDK DC4-90 |
2.0 GB |
|
WangDAT 3200 DDS |
Fuji DG-90 |
2.0 GB |
|
WangDAT 3200 DDS |
JVC DF-90 |
2.0 GB |
|
WangDAT 3200 DDS |
KAO KD200 |
1.3 GB |
|
WangDAT 3200 DDS-DC |
WangDAT 60 meter |
2.6 GB |
|
WangDAT 3200 DDS-DC |
WangDAT 90 meter |
4.0 GB |
|
MANUFACTURERS RECOMMENDED MEDIA (CONTINUED) | ||
|
Drive |
Tape |
Capacity Without Compression |
|
WangDAT 3200 DDS-DC |
Maxell HS-4/60 |
2.6 GB |
|
WangDAT 3200 DDS-DC |
Maxell HS-4/90 |
4.0 GB |
|
WangDAT 3200 DDS-DC |
TDK DC4-60 |
2.6 GB |
|
WangDAT 3200 DDS-DC |
TDK DC4-90 |
4.0 GB |
|
WangDAT 3200 DDS-DC |
Fuji DG-90 |
4.0 GB |
|
WangDAT 3200 DDS-DC |
JVC DF-90 |
4.0 GB |
|
WangDAT 3200 DDS-DC |
KAO KD200 |
2.6 GB |
