Device Type

Internal Tape Drive

Interface

SCSI-2 Fast/Wide

Format

AIT-1

Sustained Transfer Rate

3MBPS (Native), 6 to 9MBPS (Compressed)

Size

3.5 in. half height

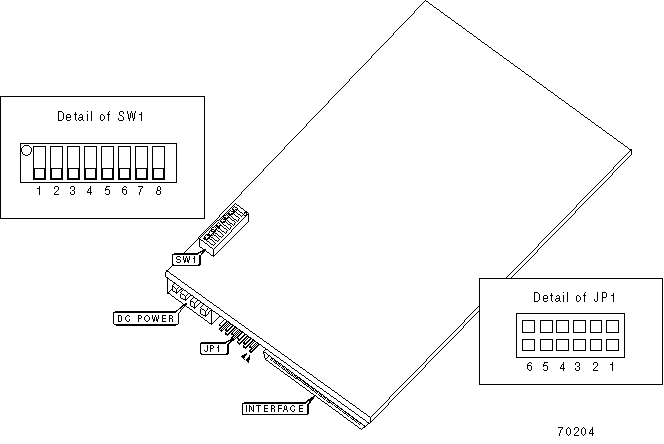

View

Bottom

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Parity check enabled

JP1/1

Open

Parity check disabled

JP1/1

Closed

»

Factory configured - do not alter

JP1/2

Unidentified

»

Factory configured - do not alter

SW1/1

Unidentified

»

Factory configured - do not alter

SW1/2

Unidentified

»

Factory configured - do not alter

SW1/3

Unidentified

»

Factory configured - do not alter

SW1/4

Unidentified

»

Termination enabled

SW1/6

On

Termination disabled

SW1/6

Off

»

Data compression enabled

SW1/7

On

Data compression disabled

SW1/7

Off

»

Factory configured - do not alter

SW1/8

On

DRIVE SELECT ID

Drive ID

JP1/3

JP1/4

JP1/5

JP1/6

»

0

Open

Open

Open

Open

1

Open

Open

Open

Closed

2

Open

Open

Closed

Open

3

Open

Open

Closed

Closed

4

Open

Closed

Open

Open

5

Open

Closed

Open

Closed

6

Open

Closed

Closed

Open

7

Open

Closed

Closed

Closed

8

Closed

Open

Open

Open

9

Closed

Open

Open

Closed

10

Closed

Open

Closed

Open

11

Closed

Open

Closed

Closed

12

Closed

Closed

Open

Open

13

Closed

Closed

Open

Closed

14

Closed

Closed

Closed

Open

15

Closed

Closed

Closed

Closed

TERMINATION POWER SELECTION

Setting

SW1/5

»

TERMPWR supplied by drive

On

TERMPWR supplied by SCSI interface to drive

Off

MANUFACTURERS RECOMMENDED MEDIA

Tape

Capacity Without Compression

Capacity With Compression

AIT-1

25GB

50GB to 75GB

DIAGNOSTIC LED(S)

LED1

LED2

LED3

Condition

Off

Off

Off

No drive or SCSI activity

On

Off

Off

SCSI activity only

Quick flash

Quick flash

Off

Write-enabled tape being loaded or unloaded

Quick flash

Quick flash

On

Write-protected tape being loaded or unloaded

Off

On

Quick flash

Cleaning tape

Off

On

Off

Tape loaded - No drive or SCSI activity

On

On

Off

Tape loaded - Activity on SCSI bus only

Quick flash

On

Off

Tape loaded - SCSI and drive activity

Variable

On

On

Write-protected tape loading into drive

Variable

Blinking

Variable

Media error (loaded tape has excess errors)

Unidentified

Unidentified

Blinking

Tape heads need cleaning

Unidentified

Unidentified

Double flash

Self-test failure

Slow flash

Unidentified

Unidentified

Hardware failure - Waiting for reset

Unidentified

Slow flash

Unidentified

Hardware failure - Waiting for eject

Note: The color of the LED's are unidentified.
