BEHAVIOR TECH COMPUTER CORPORATION
IDE CD-ROM DRIVE (VER. 1.0)
|
Device Type |
CD-ROM |
|
Interface |
ATAPI |
|
Spin Rate |
Unidentified |
|
Formats Supported |
CD-ROM (Mode 1 & Mode 2) |
|

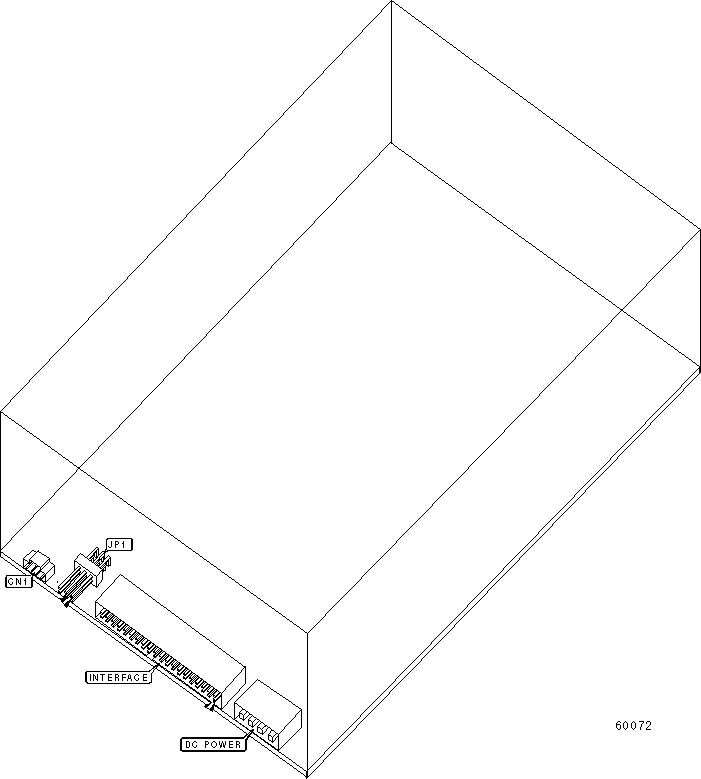

View |
Top |
|
CONNECTIONS | |
|
Function |
Label |
|
Audio line out |
CN1 |
|
ATAPI MASTER/SLAVE | |||
|
Setting |
JP1/1 |
JP1/2 |
JP1/3 |
|
Single drive only |
Closed |
Open |
Open |
|
Master in two drive system |
Closed |
Open |
Open |
|
Slave in two drive system |
Open |
Closed |
Open |
|
Cable select |
Open |
Open |
Closed |
