Device Type	CD-ROM
Interface	ATAPI
Spin Rate	12x
Formats Supported Read	CD-ROM (mode 1 & 2), CD-XA (mode 2, form 1 & 2), Audio-CD, Video-CD, CD-I/FMV, Photo-CD, CD Plus, I-trax, Karaoke-CD,
Formats Supported Write	N/A

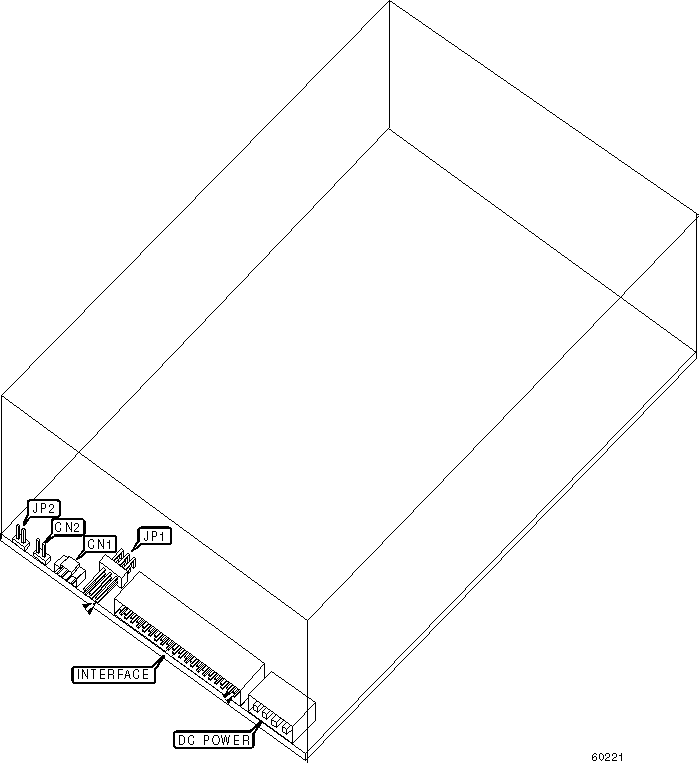

View	Top

CONNECTIONS
Function	Label	Function	Label
Analog audio out	CN1	Digital audio out	CN2

ATAPI MASTER/SLAVE SELECTION
Setting		JP1/jumper 1	JP1/jumper 2	JP1/jumper 3
	Single drive only	Closed	Open	Open
	Master in two drive system	Closed	Open	Open
»	Slave in a two drive system	Open	Closed	Open
	Master/Slave determined by Cable Select (CSEL)	Open	Open	Closed

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	JP2	Open
