Device Type

Internal CD-ROM

Interface

ATAPI

Spin Rate (Read/Write)

6x/2x

Formats Supported Read

CD-XA, CD-DA, CD-R, CD-I, CD-ROM, Photo-CD, Video CD, CD-Plus, CD-RW

Formats Supported Write

CD-XA, CD-DA, CD-R, CD-I, CD-ROM, Photo-CD, Video CD, CD-Plus, CD-RW

View

Top

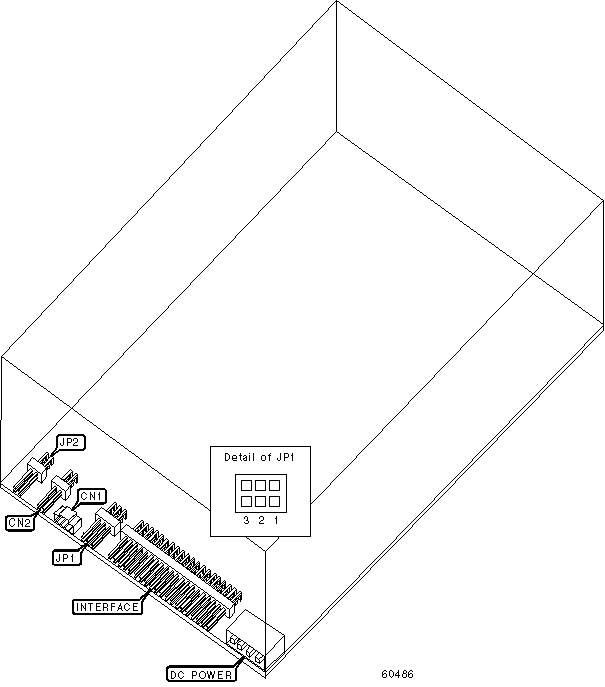

CONNECTIONS

Function

Label

Function

Label

Audio line out

CN1

Digital audio line out

CN2

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

JP2

Unidentified

ATAPI MASTER/SLAVE

Setting

JP1

Master in two drive system

Pins 1 & 4 closed

»

Slave in two drive system

Pins 2 & 5 closed

Master/slave determined by cable select

Pins 3 & 6 closed
