Device Type	CD-ROM
Interface	ATAPI
Spin Rate	100x
Formats Supported Read	CD-XA, CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Red & Yellow Book, CD-Movie, CD-Plus

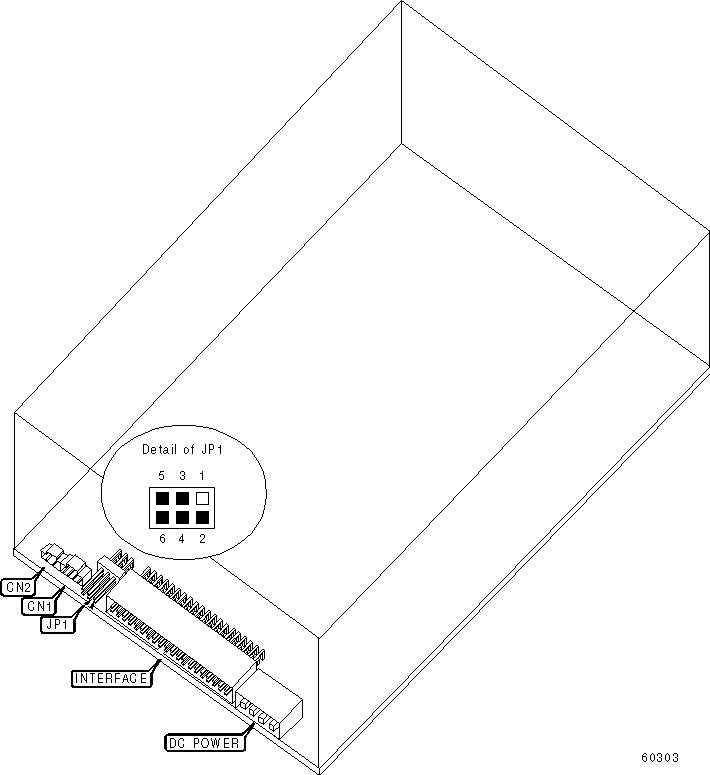

View	Top

CONNECTIONS
Function	Label	Function	Label
Analog audio out connector	CN1	Digital audio out connector	CN2

ATAPI MASTER/SLAVE
Setting	JP1
Master in two drive system	Pins 1 & 2 closed
Slave in two drive system	Pins 3 & 4 closed
Master/Slave determined by cable select	Pins 5 & 6 closed
