Device Type	Internal CD-ROM
Interface	ATAPI
Spin Rate (Read/Write/Re-write)	6x/2x/2x
Formats Supported Read	CD-RW, CD-R
Formats Supported Write	CD-RW, CD-R

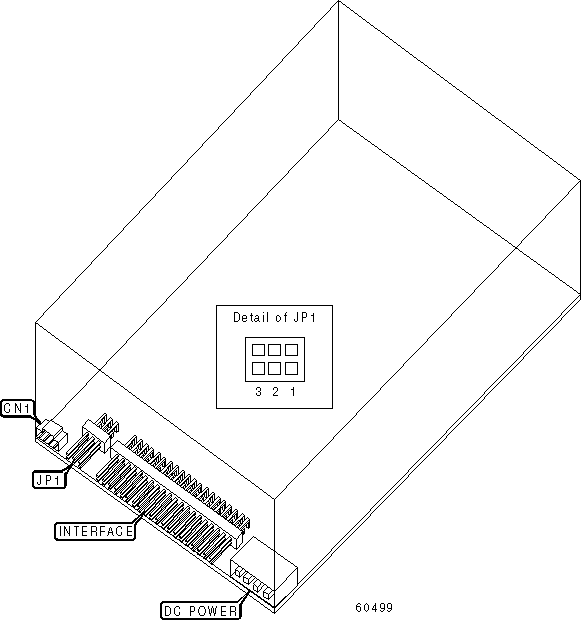

View	Top

CONNECTIONS
Function	Label
Audio line out	CN1

MASTER/SLAVE SELECTION
Setting	JP1/1	JP1/2	JP1/3
Master in two drive system	Closed	Open	Open
Slave in two drive system	Open	Closed	Open
Master/slave determined by cable select	Open	Open	Closed
