CDX-600 IDE/ATAPI

LASONIC ELECTRONICS CORPORATION

CDX-600 IDE/ATAPI

Device Type

CD-ROM

Interface

ATAPI

Spin Rate

6x

Formats Supported

CD-DA, CD-I, CD-ROM (mode 1, & mode 2), CD-ROM XA, Photo CD

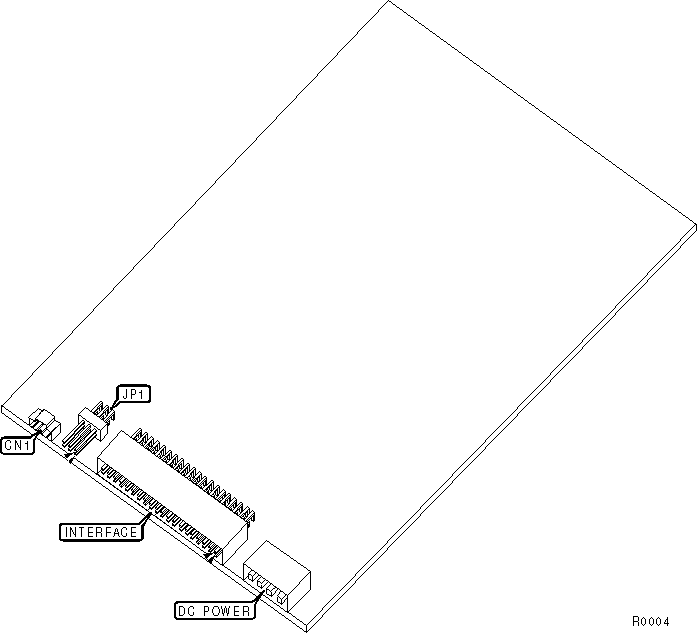

CONNECTIONS

Function

Label

Audio line out

CN1

ATAPI MASTER/SLAVE

Setting

JP1/1

JP1/2

JP1/3

Single drive only

Closed

Open

Open

Master in two drive system

Closed

Open

Open

Slave in two drive system

Open

Closed

Open

Master/Slave determined by Cable Select

Open

Open

Closed

Note: ‘Single drive’ refers to the sole drive connected to an IDE interface (there may be up to two on a given system). Master & Slave refer to two drives connected to an interface.

Device Type	CD-ROM
Interface	ATAPI
Spin Rate	6x
Formats Supported	CD-DA, CD-I, CD-ROM (mode 1, & mode 2), CD-ROM XA, Photo CD

ATAPI MASTER/SLAVE
Setting	JP1/1	JP1/2	JP1/3
Single drive only	Closed	Open	Open
Master in two drive system	Closed	Open	Open
Slave in two drive system	Open	Closed	Open
Master/Slave determined by Cable Select	Open	Open	Closed
Note: ‘Single drive’ refers to the sole drive connected to an IDE interface (there may be up to two on a given system). Master & Slave refer to two drives connected to an interface.
