Device Type	Internal CD-ROM
Interface	ATAPI
Spin Rate	14x/32x
Formats Supported Read	CD-XA, CD-DA, CD-R, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, Red & Yellow Book, CD-Plus, CD-E

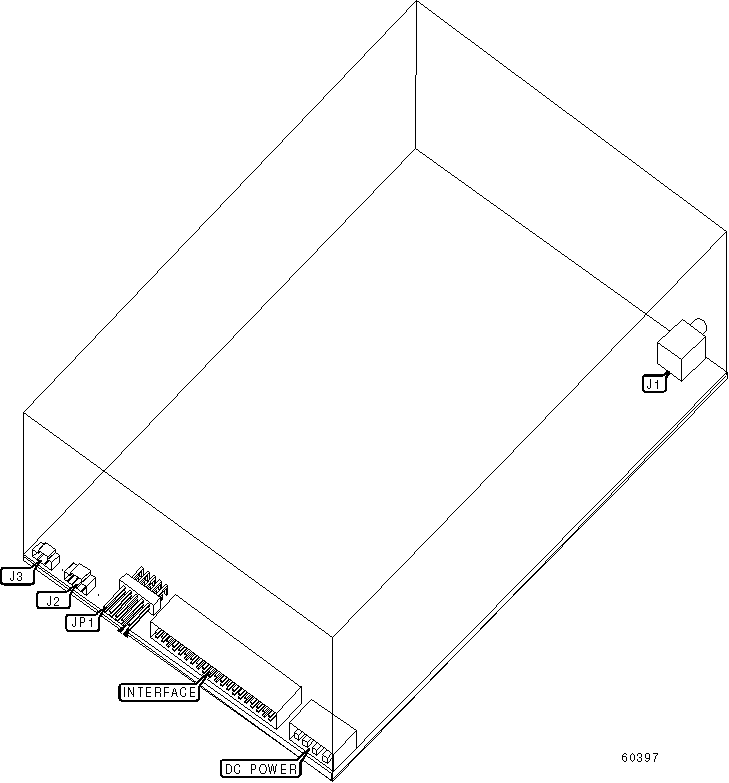

View	Top

CONNECTIONS
Function	Label	Function	Label
Headphone jack	J1	Digital audio out	J2
Reserved	J3

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	JP1/Pins 7 & 8	Unidentified
»	Factory configured - do not alter	JP1/Pins 9 & 10	Unidentified

ATAPI MASTER/SLAVE
Setting	JP1/Pins 1 & 2	JP1/Pins 3 & 4	JP1/Pins 5 & 6
Master in two drive system	Closed	Open	Open
Slave in two drive system	Open	Closed	Open
Master/Slave cable select	Open	Open	Closed
