Device Type	CD-ROM
Interface	SCSI
Spin Rate	2X
Formats Supported	CD-XA, Photo-CD, High Sierra, ISO 9660, Apple HFS, Music CD

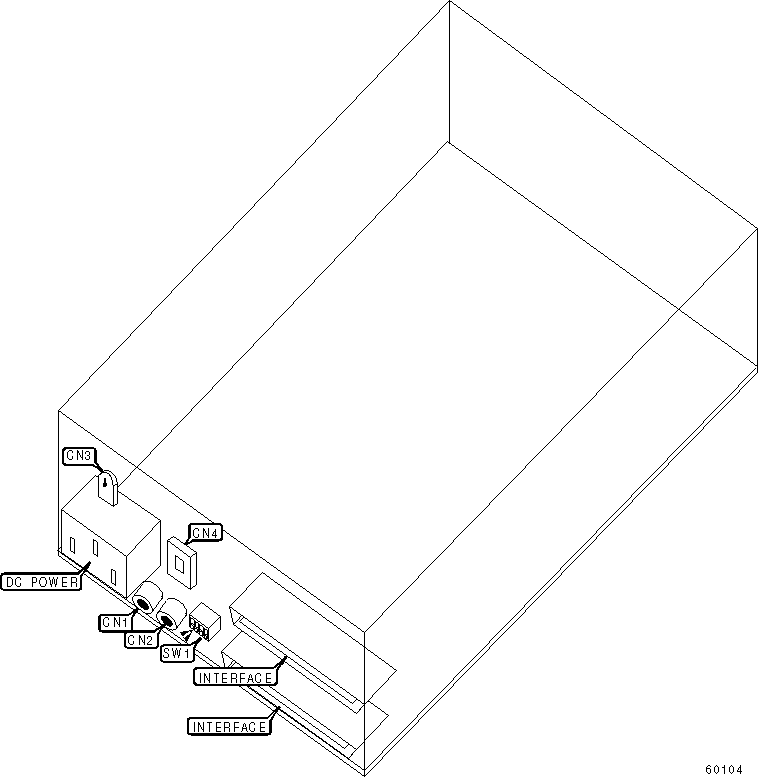

View	Top

CONNECTIONS
Function	Label	Function	Label
Audio line out (Right)	CN1	Voltage Select Switch	CN3
Audio line out (Left)	CN2	SCSI ID selector	CN4

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	SW1/1	Off
»	Termination enabled	SW1/2	On
	Termination disabled	SW1/2	Off
»	SCSI 2 mode enabled	SW1/3	On
	SCSI 1 mode enabled	SW1/3	Off
»	Factory configured - do not alter	SW1/4	Off
