Device Type	CD-ROM
Interface	SCSI
Spin Rate	8x
Formats Supported	CD-XA, CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD

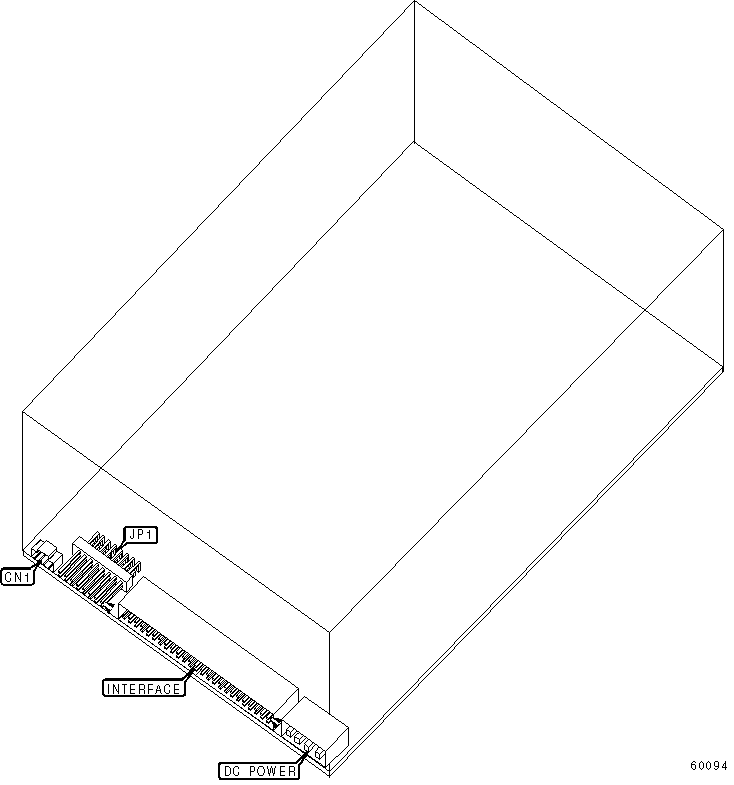

View	Top

CONNECTIONS
Function	Label
Audio line out	CN1

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Power termination enabled	JP1/1	Closed
	Power termination disabled	JP1/1	Open
»	Termination enabled	JP1/2	Closed
	Termination disabled	JP1/2	Open
»	Disconnect allow jumper enabled	JP1/3	Closed
	Disconnect allow jumper disabled	JP1/3	Open
»	Parity disabled	JP1/4	Open
	Parity enabled	JP1/4	Closed

DRIVE SELECT ID
Drive ID		SW1/5	SW1/6	SW1/7	SW1/8
	0	Open	Open	Open	Open
	1	Open	Open	Closed	Open
»	2	Open	Closed	Open	Open
	3	Open	Closed	Closed	Open
	4	Closed	Open	Open	Open
	5	Open	Closed	Open	Closed
	6	Closed	Closed	Open	Open
	7	Closed	Closed	Closed	Open
