PINNACLE MICRO, INC.
EXPLORER CD RECORDER, RCD 5040 (INTERNAL)
|
Device Type |
Recordable CD |
|
Interface |
SCSI-1 |
|
Spin Rate - Read |
4x |
|
Spin Rate - Write |
2x |
|
Formats Supported |
Unidentified |
|

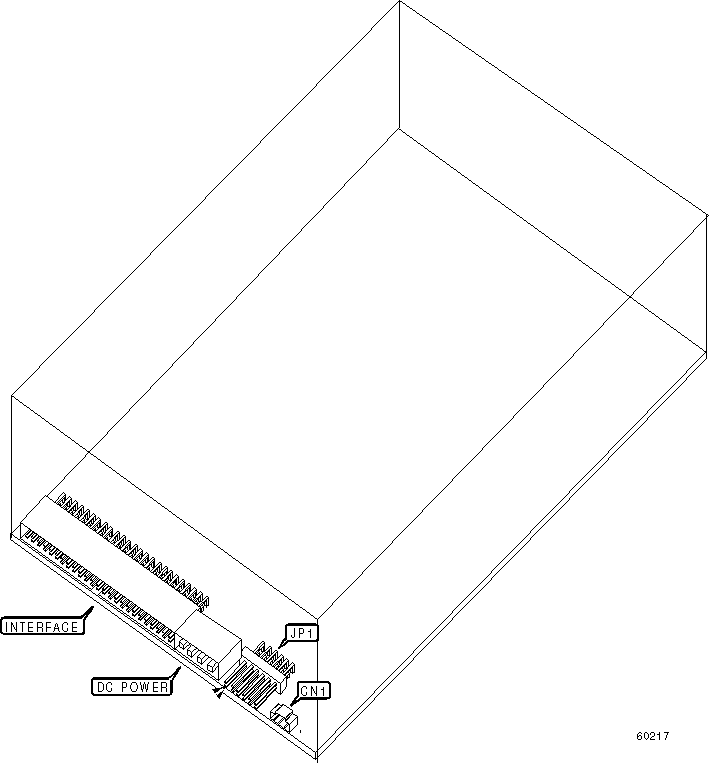

View |
Top |
|
CONNECTIONS | |
|
Function |
Label |
|
Audio out |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Termination enabled |
JP1/jumper 1 |
Closed |
|
Termination disabled |
JP1/jumper 1 |
Open | |
| » |
Factory configured - do not alter |
JP1/jumper 2 |
Open |
| » |
Parity check disabled |
JP1/jumper 3 |
Open |
|
Parity check enabled |
JP1/jumper 3 |
Closed | |
|
DRIVE SELECT ID | ||||
|
Drive ID |
JP1/jumper 4 |
JP1/jumper 5 |
JP1/jumper 6 | |
| » |
0 |
Open |
Open |
Open |
|
1 |
Open |
Open |
Closed | |
|
2 |
Open |
Closed |
Open | |
|
3 |
Open |
Closed |
Closed | |
|
4 |
Closed |
Open |
Open | |
|
5 |
Closed |
Open |
Closed | |
|
6 |
Closed |
Closed |
Open | |
|
7 |
Closed |
Closed |
Closed | |
|
DIAGNOSTIC LED(S) - NOT DIAGRAMMED | |||
|
LED |
Color |
Status |
Condition |
|
Speed - front panel |
Green |
On |
4x and 2x spin rate |
|
Speed - front panel |
Yellow |
On |
1x spin rate |
|
Speed - front panel |
N/A |
Off |
No disc inserted |
|
Busy - front panel |
Green |
On |
Reading data from disc |
|
Busy - front panel |
Yellow |
On |
Writing data or audio to disc |
|
Busy - front panel |
Yellow |
Blinking |
Playing audio |
|
Busy - front panel |
N/A |
Off |
Idle or no disc inserted |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Host adapter for the RCD 5040 in a PC system is Adaptec AHA-1535. Host adapter for the Explorer CD Recorder can be Pinnacle SCSI controller card or Adaptec SCSI host adapter models AHA-152XA, AHA-153X, AHA-154XC, AHA-274X, AHA-284X , AHA-294X. |
