Device Type	CD-ROM
Interface	ATAPI
Spin Rate	8x/10x
Formats Supported Read	CD-XA, CD-DA, CD-I/FMV, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, Red & Yellow Book

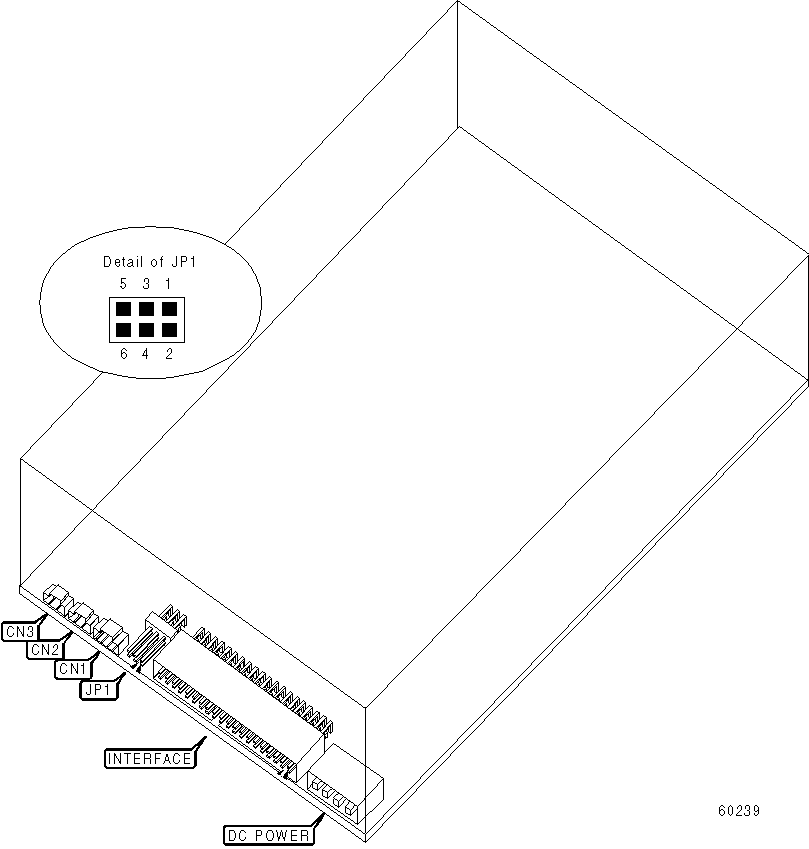

View	Top

CONNECTIONS
Function	Label	Function	Label
Audio line out connector	CN1	Test jumper	CN3
Digital audio out connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter.	JP1	Pins 5 & 6 open

ATAPI MASTER/SLAVE
Setting	JP1
Master	Pins 1 & 2 closed
Slave	Pins 3 & 4 closed
