Device Type	CD-ROM
Interface	SCSI
Spin Rate	1x
Formats Supported Read	CD-DA, CD-ROM (Mode 1 & Mode 2), Red & Yellow Book

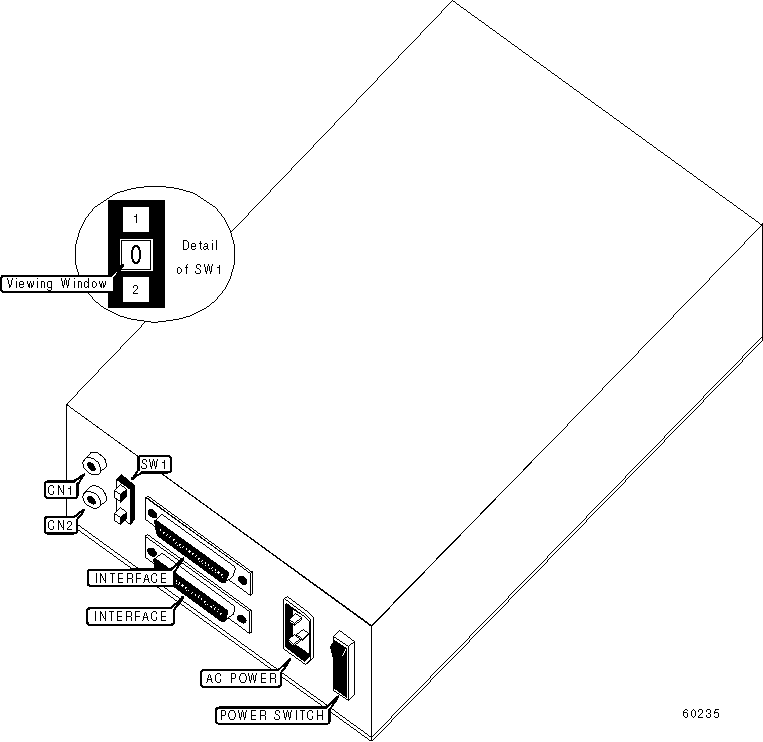

View	Top

CONNECTIONS
Function	Label	Function	Label
CD Audio out - left channel	CN1	CD Audio out - right channel	CN2

DRIVE SELECT ID
Drive ID	SW1
Lower	Button 1
Higher	Button 2
Note: Push SW1/button 1 to select a lower SCSI ID number. Push SW1/button 2 to select a higher SCSI ID number. If number shown in viewing window is ‘0’ do not push button 1. If number shown in viewing window is 7, do not push button 2.
