Device Type	Internal CD-ROM
Interface	SCSI
Spin Rate (Read)	32x
Formats Supported Read	CD-XA, CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-R, CD-Plus, CD-RW

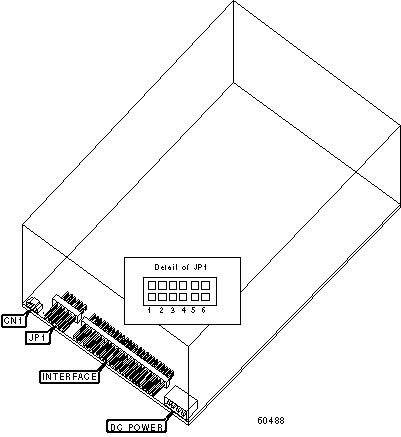

View	Top

CONNECTIONS
Function	Label
Audio line out	CN1

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	JP1/4	Open
»	Termination enabled	JP1/5	Closed
	Termination disabled	JP1/5	Open
»	Factory configured - do not alter	JP1/6	Open

SCSI ADDRESS SELECTION
SCSI address	JP1/1	JP1/2	JP1/3
0	Open	Open	Open
1	Closed	Open	Open
2	Open	Closed	Open
3	Closed	Closed	Open
4	Open	Open	Closed
5	Closed	Open	Closed
6	Open	Closed	Closed
7	Closed	Closed	Closed
