Device Type	Internal CD-ROM
Interface	IDE(AT)
Spin Rate (Read)	32x
Formats Supported Read	CD-XA, CD-R, CD-RW, CD-I, CD-ROM (Mode 1 & Mode 2), ISO 9660, Photo-CD, Video CD, Red & Yellow Book, CD-Plus, Multi-session

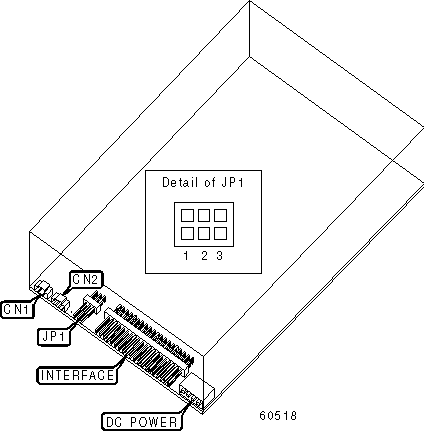

View	Top

CONNECTIONS
Function	Label	Function	Label
Digital audio line out	CN1	Audio line out	CN2

MASTER/SLAVE SELECTION
Setting	JP1/1	JP1/2	JP1/3
Master in two drive system	Open	Open	Closed
Slave in two drive system	Open	Closed	Open
Master/slave determined by cable select	Closed	Open	Open
