Card Type	Modem(asynchronous)
Chip Set	Unidentified
Maximum Data Rate	14.4Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	External
Fax Class	Class I
Data Modulation Protocol	Bell 103A/212A ITU-T V.21, V.22bis, V.32, V.32bis
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29

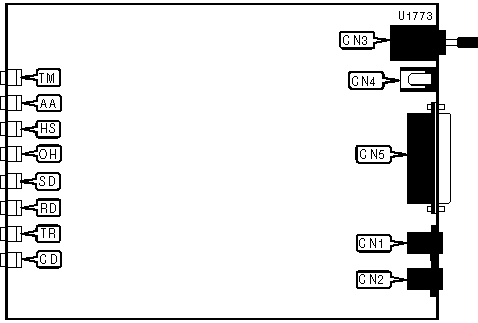

CONNECTIONS
Function	Label		Function		Label
Line out		CN1		DC power		CN4
Line in		CN2		RS-232/422		CN5
Power switch		CN3

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
TM	Red	Off	Modem not in test mode
TM	Red	Blinking	Modem in test mode and errors detected
AA	Red	On	Auto-answer enabled or connection with remote modem is good
AA	Red	Off	Auto-answer disabled
HS	Red	On	Modem is operating at 4800bps or faster
HS	Red	Off	Modem is operating at slower than 4800bps
OH	Red	On	Modem is off-hook
OH	Red	Off	Modem is on-hook
SD	Red	Blinking	Modem is transmitting data
SD	Red	Off	Modem is not transmitting data
RD	Red	Blinking	Modem is receiving data
RD	Red	Off	Modem is not receiving data
TR	Red	On	DTR signal is high
TR	Red	Off	DTR signal is low
CD	Red	On	Carrier signal detected
CD	Red	Off	Carrier signal not detected

AUTO-RETRAIN - FALLBACK/FALLFORWARD
Type:	Configuration
Format:	AT [cmds] %En [cmds]
Description:	Controls auto-retrain mode and fallback/fall forward
Command	Function
í %E0	Auto-retrain disabled
%E1	Auto-retrain enabled
%E2	Fallback/fall forward enabled

FAX TRANSMIT LEVEL
Type:	Register
Format:	AT [cmds] S92=n [cmds]
Default:	10
Range:	1-15
Unit:	-1dBm
Description:	Controls fax transmission level

FLOW CONTROL CHARACTER - XOFF
Type:	Register
Format:	AT [cmds] S33=n [cmds]
Default:	19
Range:	0-255
Unit:	ASCII
Description:	Sets the character used to represent XOFF

FLOW CONTROL CHARACTER - XON
Type:	Register
Format:	AT [cmds] S32=n [cmds]
Default:	17
Range:	0-255
Unit:	ASCII
Description:	Sets the character used to represent XON

LINE SIGNAL LEVEL
Type:	Immediate
Format:	AT [cmds] %L [cmds]
Range:	009-043
Unit:	-dBm
Description:	Reports received line signal level

PROTOCOL/SPEED
Format	AT [cmds] S37=n [cmds]
Default:	0
Range:	0-10
Description:	Selects switched line speed
Command	Function
í S37=0	Connect at last AT speed
S37=1	Connect at300bps
S37=2	Connect at 300bps
S37=3	Connect at 300bps
S37=4	Not used
S37=5	Connect at 1200bps
S37=6	Connect at 2400bps
S37=7	Connect at V.23
S37=8	Connect at 4800bps
S37=9	Connect at 9600bps
S37=10	Connect at 12.0Kbps
S37=11	Connect at 14.4Kbps
S37=12	Connect at 7200bps

RESULT CODES
Type:	Configuration
Format:	AT [cmds] S41=n [cmds]
Description:	Selects extended result codes
Command	Function
í S41=0	Display DTE speed
S41=1	Display carrier, protocol and compression
S41=2	Display DCE speed

SLEEP TIMER
Format	AT [cmds] S24=n [cmds]
Default:	0
Range:	0 - 255
Unit:	Seconds
Description:	Maximum duration of DTE and DCE inactivity allowed prior to initiating low-power sleep mode
