ADC KENTROX
CROSSPATH MINI-DCS MODEL 77710
|
Card Type |
T1 CSU/DSU |
|
Chipset |
Unidentified |
|
T1 Transfer Rate |
1.544Mbps |
|
T1 Protocol |
AMI, B8ZS |
|
Frame Type |
Unidentified |
|
Data Bus |
Serial |
|

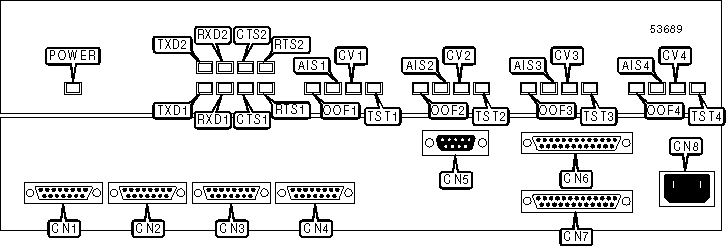

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
T1 line out 4 (network interface) |
CN1 |
Serial control port |
CN5 |
|
T1 line out 3 (network interface) |
CN2 |
V.35 serial data port 2 |
CN6 |
|
T1 line out 2 (network interface) |
CN3 |
V.35 serial data port 1 |
CN7 |
|
T1 line out 1 (network interface) |
CN4 |
AC power in |
CN8 |
|
Note:Standard V.35 serial ports are provided on included adapter cables. | |||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
POWER |
Green |
On |
Power is on |
|
POWER |
Red |
On |
Self-test failed |
|
POWER |
N/A |
Off |
Power is off |
|
TXD1 |
Yellow |
On |
Data port 1 is transmitting data to network |
|
TXD1 |
Yellow |
Off |
Data port 1 is not transmitting data to network |
|
RXD1 |
Yellow |
On |
Data port 1 is receiving data from network |
|
RXD1 |
Yellow |
Off |
Data port 1 is not receiving data from network |
|
CTS1 |
Yellow |
On |
Data port 1 CTS is high |
|
CTS1 |
Yellow |
Off |
Data port 1 CTS is low |
|
RTS1 |
Yellow |
On |
Data port 1 RTS is high |
|
RTS1 |
Yellow |
Off |
Data port 1 RTS is low |
|
TXD2 |
Yellow |
On |
Data port 2 is transmitting data to network |
|
TXD2 |
Yellow |
Off |
Data port 2 is not transmitting data to network |
|
RXD2 |
Yellow |
On |
Data port 2 is receiving data from network |
|
RXD2 |
Yellow |
Off |
Data port 2 is not receiving data from network |
|
CTS2 |
Yellow |
On |
Data port 2 CTS is high |
|
CTS2 |
Yellow |
Off |
Data port 2 CTS is low |
|
RTS2 |
Yellow |
On |
Data port 2 RTS is high |
|
RTS2 |
Yellow |
Off |
Data port 2 RTS is low |
|
DIAGNOSTIC LED(S) (CON'T) | |||
|
LED |
Color |
Status |
Condition |
|
OOF1 |
Green |
On |
T1 line 1 link is synchronized |
|
OOF1 |
Red |
On |
T1 line 1 signal is out of frame synchronization |
|
OOF1 |
N/A |
Off |
T1 line 1 signal is not out of frame synchronization |
|
AIS1 |
Red |
On |
Loss of Signal condition detected on T1 line 1 |
|
AIS1 |
Red |
Blinking |
Alarm Indication Signal condition detected on T1 line 1 |
|
AIS1 |
Red |
Off |
Valid signal detected on T1 line 1 |
|
CV1 |
Red |
Blinking |
CRC error detected on T1 line 1 |
|
CV1 |
Red |
Off |
CRC error not detected on T1 line 1 |
|
TST1 |
Yellow |
On |
Yellow alarm condition detected on T1 line 1 |
|
TST1 |
Yellow |
Blinking |
Loopback test in progress on T1 line 1 |
|
TST1 |
Yellow |
Off |
Yellow alarm condition not detected and no loopback test in progress on T1 line 1 |
|
OOF2 |
Green |
On |
T1 line 2 link is synchronized |
|
OOF2 |
Red |
On |
T1 line 2 signal is out of frame synchronization |
|
OOF2 |
N/A |
Off |
T1 line 2 signal is not out of frame synchronization |
|
AIS2 |
Red |
On |
Loss of Signal condition detected on T1 line 2 |
|
AIS2 |
Red |
Blinking |
Alarm Indication Signal condition detected on T1 line 2 |
|
AIS2 |
Red |
Off |
Valid signal detected on T1 line 2 |
|
CV2 |
Red |
Blinking |
CRC error detected on T1 line 2 |
|
CV2 |
Red |
Off |
CRC error not detected on T1 line 2 |
|
TST2 |
Yellow |
On |
Yellow alarm condition detected on T1 line 2 |
|
TST2 |
Yellow |
Blinking |
Loopback test in progress on T1 line 2 |
|
TST2 |
Yellow |
Off |
Yellow alarm condition not detected and no loopback test in progress on T1 line 2 |
|
OOF3 |
Green |
On |
T1 line 3 link is synchronized |
|
OOF3 |
Red |
On |
T1 line 3 signal is out of frame synchronization |
|
OOF3 |
N/A |
Off |
T1 line 3 signal is not out of frame synchronization |
|
AIS3 |
Red |
On |
Loss of Signal condition detected on T1 line 3 |
|
AIS3 |
Red |
Blinking |
Alarm Indication Signal condition detected on T1 line 3 |
|
AIS3 |
Red |
Off |
Valid signal detected on T1 line 3 |
|
CV3 |
Red |
Blinking |
CRC error detected on T1 line 3 |
|
CV3 |
Red |
Off |
CRC error not detected on T1 line 3 |
|
TST3 |
Yellow |
On |
Yellow alarm condition detected on T1 line 3 |
|
TST3 |
Yellow |
Blinking |
Loopback test in progress on T1 line 3 |
|
TST3 |
Yellow |
Off |
Yellow alarm condition not detected and no loopback test in progress on T1 line 3 |
|
OOF4 |
Green |
On |
T1 line 4 link is synchronized |
|
OOF4 |
Red |
On |
T1 line 4 signal is out of frame synchronization |
|
OOF4 |
N/A |
Off |
T1 line 4 signal is not out of frame synchronization |
|
DIAGNOSTIC LED(S) (CON'T) | |||
|
LED |
Color |
Status |
Condition |
|
AIS4 |
Red |
On |
Loss of Signal condition detected on T1 line 4 |
|
AIS4 |
Red |
Blinking |
Alarm Indication Signal condition detected on T1 line 4 |
|
AIS4 |
Red |
Off |
Valid signal detected on T1 line 4 |
|
CV4 |
Red |
Blinking |
CRC error detected on T1 line 4 |
|
CV4 |
Red |
Off |
CRC error not detected on T1 line 4 |
|
TST4 |
Yellow |
On |
Yellow alarm condition detected on T1 line 4 |
|
TST4 |
Yellow |
Blinking |
Loopback test in progress on T1 line 4 |
|
TST4 |
Yellow |
Off |
Yellow alarm condition not detected and no loopback test in progress on T1 line 4 |
