ASCEND COMMUNICATIONS, INC.
MULTIBAND PLUS - BRI
|
Card Type |
ISDN BRI |
|
Chip Set |
Unidentified |
|
I/O Options |
AC power connector, power switch, serial port, ISDN BRI network interface via RJ-45 connector (8), palmtop port via RJ-12 connector (2),data port via 44-pin connector (4) |
|
Wiring Type |
BRI |
|
Network Transfer Rate |
64Kbps |
|
Data Bus |
External |
|

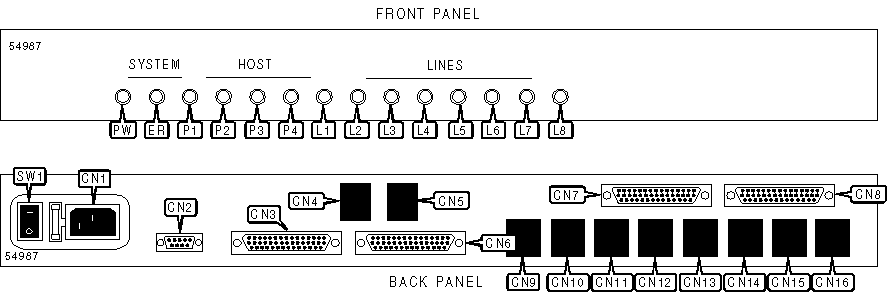

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
AC power connector |
CN1 |
RJ-45 network interface - line 2 |
CN10 |
|
Serial port |
CN2 |
RJ-45 network interface - line 3 |
CN11 |
|
44-pin DTE port 1 |
CN3 |
RJ-45 network interface - line 4 |
CN12 |
|
RJ-12 palmtop connector |
CN4 |
RJ-45 network interface - line 5 |
CN13 |
|
RJ-12 palmtop connector |
CN5 |
RJ-45 network interface - line 6 |
CN14 |
|
44-pin DTE port 2 |
CN6 |
RJ-45 network interface - line 7 |
CN15 |
|
44-pin DTE port 3 |
CN7 |
RJ-45 network interface - line 8 |
CN16 |
|
44-pin DTE port 4 |
CN8 |
Power |
SW1 |
|
RJ-45 network interface - line 1 |
CN9 | ||
|
DIAGNOSTIC LEDS | |||
|
LED |
Color |
Status |
Condition |
|
PW |
Green |
On |
Power is on |
|
PW |
Green |
Off |
Power is off |
|
ER |
Red |
On |
Self test in progress |
|
ER |
Red |
Blinking |
Device is not functional due to fault or error |
|
ER |
Red |
Off |
Device is functional |
|
P1 |
Green |
On |
Channel 1 is active |
|
P1 |
Green |
Blinking |
Device is in diagnostic mode. BERT, auto-BERT, remote loopback, or local loopback test in progress |
|
P1 |
Green |
Off |
Channel 1 is inactive |
|
P2 |
Green |
On |
Channel 2 is active |
|
P2 |
Green |
Blinking |
Device is in diagnostic mode. BERT, auto-BERT, remote loopback, or local loopback test in progress |
|
P2 |
Green |
Off |
Channel 2 is inactive |
|
P3 |
Green |
On |
Channel 3 is active |
|
P3 |
Green |
Blinking |
Device is in diagnostic mode. BERT, auto-BERT, remote loopback, or local loopback test in progress |
|
P3 |
Green |
Off |
Channel 3 is inactive |
|
P4 |
Green |
On |
Channel 4 is active |
|
P4 |
Green |
Blinking |
Device is in diagnostic mode. BERT, auto-BERT, remote loopback, or local loopback test in progress |
|
P4 |
Green |
Off |
Channel 4 is inactive |
|
L1 |
Green |
On |
Valid logical link established on ISDN BRI line 1 |
|
L1 |
Green |
Blinking |
Physical link is good, logical link is broken. ISDN BRI line 1 connection not compatible with unit or configuration |
|
L1 |
Green |
Off |
Link is broken on ISDN BRI line 1 |
|
L2 |
Green |
On |
Valid logical link established on ISDN BRI line 2 |
|
L2 |
Green |
Blinking |
Physical link is good, logical link is broken. ISDN BRI line 2 connection not compatible with unit or configuration |
|
L2 |
Green |
Off |
Link is broken on ISDN BRI line 2 |
|
L3 |
Green |
On |
Valid logical link established on ISDN BRI line 3 |
|
L3 |
Green |
Blinking |
Physical link is good, logical link is broken. ISDN BRI line 3 connection not compatible with unit or configuration |
|
L3 |
Green |
Off |
Link is broken on ISDN BRI line 3 |
|
L4 |
Green |
On |
Valid logical link established on ISDN BRI line 4 |
|
L4 |
Green |
Blinking |
Physical link is good, logical link is broken. ISDN BRI line 4 connection not compatible with unit or configuration |
|
L4 |
Green |
Off |
Link is broken on ISDN BRI line 4 |
|
DIAGNOSTIC LEDS (CONT.) | |||
|
L5 |
Green |
On |
Valid logical link established on ISDN BRI line 5 |
|
L5 |
Green |
Blinking |
Physical link is good, logical link is broken. ISDN BRI line 5 connection not compatible with unit or configuration |
|
L5 |
Green |
Off |
Link is broken on ISDN BRI line 5 |
|
L6 |
Green |
On |
Valid logical link established on ISDN BRI line 6 |
|
L6 |
Green |
Blinking |
Physical link is good, logical link is broken. ISDN BRI line 6 connection not compatible with unit or configuration |
|
L6 |
Green |
Off |
Link is broken on ISDN BRI line 6 |
|
L7 |
Green |
On |
Valid logical link established on ISDN BRI line 7 |
|
L7 |
Green |
Blinking |
Physical link is good, logical link is broken. ISDN BRI line 7 connection not compatible with unit or configuration |
|
L7 |
Green |
Off |
Link is broken on ISDN BRI line 7 |
|
L8 |
Green |
On |
Valid logical link established on ISDN BRI line 8 |
|
L8 |
Green |
Blinking |
Physical link is good, logical link is broken. ISDN BRI line 8 connection not compatible with unit or configuration |
|
L8 |
Green |
Off |
Link is broken on ISDN BRI line 8 |
