COMPAQ COMPUTER CORPORATION
14.4K BPS FAX/DATA MODEM
|
Modem Type |
Data (synchronous/asynchronous)/Fax |
|
Maximum Data Rate |
14.4Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Unidentified |
|
Data Modulation Protocol |
Unidentified |
|
Fax Modulation Protocol |
Unidentified |
|
Error Correction/Compression |
Unidentified |
|

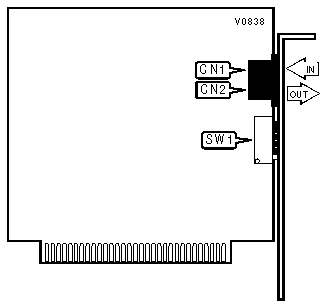

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line-in |
CN1 |
Line-out |
CN2 |
|
ADDRESS SELECT | ||
|
COM/Address |
SW1/1 |
SW1/2 |
|
í COM1/3F8h |
On |
On |
|
COM2/2F8h |
Off |
On |
|
COM3/3E8h |
On |
Off |
|
COM4/2E8h |
Off |
Off |
|
INTERRUPT SELECT | ||||
|
IRQ |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
í IRQ4 |
Off |
Off |
On |
Off |
|
IRQ2 |
On |
Off |
Off |
Off |
|
IRQ3 |
Off |
On |
Off |
Off |
|
IRQ5 |
Off |
Off |
Off |
On |
