Card Type	Modem (asynchronous)
Chip Set	Unidentified
Maximum Data Rate	14.4Kbps
Maximum Fax Rate	Unidentified
Data Bus	8-bit ISA
Fax Class	Class I & II
Data Modulation Protocol	Bell 103/212A ITU-T V.21, V.22, V.22bis, V.32, V.32bis
Fax Modulation Protocol	Unidentified
Error Correction/Compression	MNP5, V.42, V.42bis

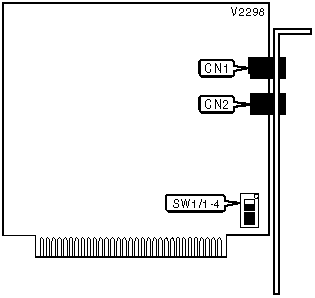

CONNECTIONS
Function	Label		Function		Label
Line out/in		CN1		Line in/out		CN2

SERIAL PORT ADDRESS
Setting	SW1/1	SW1/2
COM1 (3F8h)	Off	Off
COM2 (2F8h)	Off	On
COM3 (3E8h)	On	Off
COM4 (2E8h)	On	On

INTERRUPT SELECTION
Setting	SW1/3	SW1/4
2	On	On
3	Off	On
4	Off	Off
5	On	Off

SUPPORTED COMMAND SET

Basic AT Commands

AT, ‘Comma’, A/

A, B, C, E, F, H, L, M, N, O, P, Q, S, T, V, W, X, Y, Z

&C, &D, &F, &G, &K, &L, &M, &P, &Q, &R, &S, &T, &U, &V, &W, &Y, &Z

Extended AT Commands

\A, \B, \C, \G, \J, \O, \U, \V, \X, \Y, \Z

%A, %E, %G

S Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S18, S21, S22, S25

S26, S27, S30, S37, S95, S108, S109, S110

Special Commands

"H, "O, -C, -J, -V

Note: Please see MHI Help file for full command documentation.
