HAYES MICROCOMPUTER PRODUCTS, INC.
OPTIMA 24B + FAX96
|
Modem Type |
Data (synchronous/asynchronous)/Fax |
|
Maximum Data Rate |
2400bps |
|
Maximum Fax Rate |
9600bps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class I & II |
|
Data Modulation Protocol |
Bell 103A/212A ITU-T V.21, V.22, V.22bis |
|
Fax Modulation Protocol |
V.27ter, V.29 |
|
Error Correction/Compression |
MNP2-5, V.42, V.42bis |
|

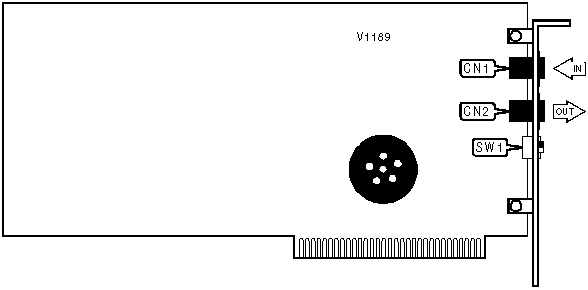

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line in |
CN1 |
Line out |
CN2 |
|
BASE I/O ADDRESS SELECTION | ||
|
Address |
SW1/1 |
SW1/2 |
|
COM1: |
On |
On |
|
COM2: |
On |
Off |
|
COM3: |
Off |
On |
|
COM4: |
Off |
Off |
