EICONCARD S51

EICON TECHNOLOGY CORPORATION

EICONCARD S51

Card Type

ISDN TA

Chip Set

Motorola

Transfer Rate

64Kbps x 2

ISDN Protocol

PPP, SDLC, HDLC

Error Correction/Compression

Generic Lempel-Ziv

I/O Options

Daughterboard headers

Switch Type

Unidentified

Data Bus

16-bit ISA

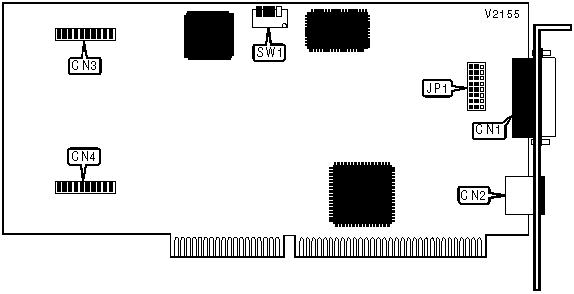

CONNECTIONS

Function

Label

Function

Label

V.24, V.35, or X.21 port

CN1

Compression daughterboard headers

CN3 & CN4

ISDN line

CN2

Note: CN1 is a 3-row DB-26 connector. Standard port configurations are provided by included adaptor cables.

CN2 is a 4-pin Mini-DIN connector. A standard RJ-45 jack is provided by an included adaptor cable.

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»
V.24 or V.35 interface

JP1

Pins 1 & 2 closed

X.21 interface

JP1

Pins 2 & 3 closed

»
Card will use primary I/O address

SW1/1

Off

Card will use secondary I/O address

SW1/1

On

Note: A single-block jumper is provided for JP1. It closes all pins 1 & 2 or all pins 2 & 3 simultaneously.

BASE I/O ADDRESS

Primary

Secondary

SW1/2

SW1/3

SW1/4

278h

678h

Off

Off

Off

280h

680h

Off

Off

On

378h

778h

Off

On

Off

»
380h

780h

Off

On

On

380h

780h

On

Off

Off

388h

788h

On

Off

On

390h

790h

On

On

Off

398h

798h

On

On

On

Note: If a card is set to use a secondary address, no other card in the system may be set to its associated primary address except for another EiconCard.

Card Type	ISDN TA
Chip Set	Motorola
Transfer Rate	64Kbps x 2
ISDN Protocol	PPP, SDLC, HDLC
Error Correction/Compression	Generic Lempel-Ziv
I/O Options	Daughterboard headers
Switch Type	Unidentified
Data Bus	16-bit ISA

CONNECTIONS
Function	Label	Function	Label
V.24, V.35, or X.21 port	CN1	Compression daughterboard headers	CN3 & CN4
ISDN line	CN2
Note: CN1 is a 3-row DB-26 connector. Standard port configurations are provided by included adaptor cables. CN2 is a 4-pin Mini-DIN connector. A standard RJ-45 jack is provided by an included adaptor cable.

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	V.24 or V.35 interface	JP1	Pins 1 & 2 closed
	X.21 interface	JP1	Pins 2 & 3 closed
»	Card will use primary I/O address	SW1/1	Off
	Card will use secondary I/O address	SW1/1	On
Note: A single-block jumper is provided for JP1. It closes all pins 1 & 2 or all pins 2 & 3 simultaneously.

BASE I/O ADDRESS
Primary		Secondary	SW1/2	SW1/3	SW1/4
	278h	678h	Off	Off	Off
	280h	680h	Off	Off	On
	378h	778h	Off	On	Off
»	380h	780h	Off	On	On
	380h	780h	On	Off	Off
	388h	788h	On	Off	On
	390h	790h	On	On	Off
	398h	798h	On	On	On
Note: If a card is set to use a secondary address, no other card in the system may be set to its associated primary address except for another EiconCard.
