RAD DATA COMMUNICATIONS
SRM-5S
|
Modem Type |
Data (synchronous) |
|
Maximum Data Rate |
19.2Kbps |
|
Data Bus |
External |
|
Data Modulation Protocol |
Proprietary |
|

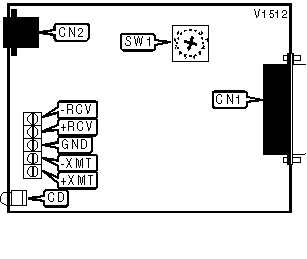

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
RS-422 |
CN1 |
Ground |
GND |
|
RJ-12/RJ-45 |
CN2 |
Transmit positive |
+XMT |
|
Receive positive |
+RCV |
Transmit negative |
-XMT |
|
Receive negative |
-RCV | ||
|
BAUD RATE | |
| Setting |
SW1 |
| 19.2Kbps |
0 |
| 14.4Kbps |
1 |
| » 9600bps |
2 |
| 7200bps |
3 |
| 4800bps |
4 |
| 3600bps |
5 |
| 2400bps |
6 |
| 1800bps |
7 |
| 1200bps |
8 |
| 900bps |
9 |
|
DIAGNOSTIC LED(s) | |||
|
LED |
Color |
Status |
Condition |
|
CD |
Red |
On |
Carrier signal is high |
|
CD |
Red |
Off |
Carrier signal is low |
