Card Type	Fax, Modem (synchronous/asynchronous)
Chip Set	Unidentified
Maximum Data Rate	28.8Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	External
Fax Class	Class II
Data Modulation Protocol	Bell 103/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29, V.33
Error Correction/Compression	MNP5, V.42, V.42bis

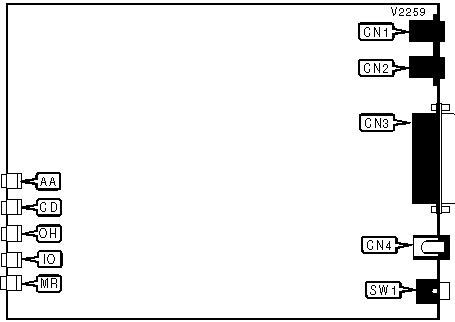

CONNECTIONS
Function	Label		Function		Label
Line out		CN1		DC power		CN4
Line in		CN2		Power switch		SW1
RS-232/422		CN3

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
AA	Red	On	Auto-answer enabled
AA	Red	Off	Auto-answer disabled
AA	Red	Blinking	Phone is ringing
CD	Red	On	Carrier signal detected
CD	Red	Off	Carrier signal not detected
OH	Red	On	Modem is off-hook
OH	Red	Off	Modem is on-hook
IO	Red	On	Modem is receiving data or transmitting data
IO	Red	Off	Modem is not receiving data or transmitting data
MR	Red	On	Power is on
MR	Red	Off	Power is off
