RACAL-DATACOM
EXCALIBUR BRI 2000
|
Card Type |
ISDN TA |
|
Chipset |
Unidentified |
|
I/O Options |
Network management port |
|
ISDN Transfer Rate |
56Kbps x 2/64Kbps x 2 |
|
ISDN Protocol |
T-Link, V.110, V.120 |
|
Switch Type |
5ESS, DMS100, NI-1 |
|
Data Bus |
Serial |

|

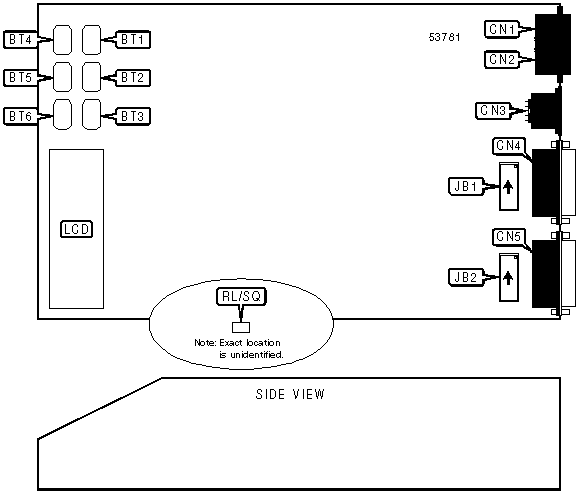

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Left arrow button |
BT1 |
ISDN U interface |
CN1 |
|
ESC button |
BT2 |
CMS 400 network management jack |
CN2 |
|
Right arrow button |
BT3 |
AC power in |
CN3 |
|
1 button |
BT4 |
RS-232 or V.35 serial port 2 via DB-26 connector |
CN4 |
|
2 button |
BT5 |
RS-232 or V.35 serial port 1 via DB-26 connector |
CN5 |
|
3 button |
BT6 |
LCD display |
LCD |
Note: Standard RS-232 or V.35 serial port connectors are provided on included adapter cables. | |||
|
USER CONFIGURABLE SETTINGS | ||
|
Setting |
Label |
Position |
|
í Factory configured - do not alter |
RL/SQ |
SQ |
|
SERIAL PORT 1 CONFIGURATION | |
|
JB1 | |
|
RS-232 |
V.35 |
|
|
|
|
SERIAL PORT 2 CONFIGURATION | |
|
JB2 | |
|
RS-232 |
V.35 |
|
|
|
|
MISCELLANEOUS TECHNICAL NOTES |
To use call bonding, serial port 1 must be used. Serial port 2 only supports speeds of 64Kbps. |
|
SUPPORTED STANDARD COMMANDS |
|
Basic AT Commands |
|
+++, 'comma', A/ |
|
A, D, E, H, O, V, X, Z |
|
&C, &D, &F, &S, &W, &Z |
|
S-Registers |
|
S2, S3, S4, S5, S7, S12, S25, S26 |
|
V.25bis Commands |
|
CIC, CRN, CRS, DIC, PRN |
Note: See MHI help file for complete information. |
Proprietary AT Command Set
|
AUTO-ANSWER | |
|
Type: |
Register |
|
Format: |
AT [cmds] S0=n [cmds] |
|
Default: |
1 |
|
Range: |
0 - 127 |
|
Unit: |
10 mS |
|
Description: |
Sets the amount of time the TA waits before answering an incoming call. |
|
BIT-MAPPED REGISTER S14 | ||
|
Format: |
AT [cmds] S14=n [cmds] | |
|
Default: |
3 | |
|
Range: |
0 - 3 | |
|
Description: |
Controls echo and result code display. | |
|
Bit |
Value |
Function |
|
0 |
0 í 1 |
Command echo disabled. Command echo enabled. |
|
1 |
0 í 1 |
Display result codes in numeric format. Display result codes in verbose format. |
|
BIT-MAPPED REGISTER S21 | |||||
|
Format: |
AT [cmds] S21=n [cmds] | ||||
|
Default: |
2 | ||||
|
Range: |
0 - 27 | ||||
|
Description: |
Controls CTS, DCD, and DSR signals. | ||||
|
Bit |
Value |
Function | |||
|
0 |
í 01 |
CTS follows RTS. CTS normal. | |||
|
1 |
0 í 1 |
DCD forced high. DCD normal. | |||
|
3, 2 |
í 0001 10 |
DSR forced high. DSR normal. DSR forced high if ISDN is active. | |||
|
4 |
í 01 |
DSR forced low during all tests. DSR forced low only if test pattern is active. | |||
|
CALLER ID NUMBER | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] @Zn [cmds] |
|
Description: |
Sets the stored number indicated as a Caller ID number for Caller ID security. |
|
CLEAR STORED NUMBERS | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] @N99 [cmds] |
|
Description: |
Clears all stored telephone numbers. |
|
CLEAR STORED NUMBERS - CALLER ID | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &N99 [cmds] |
|
Description: |
Clears all stored numbers set for caller ID. |
|
CLOCK SOURCE - RECEIVE | |
|
Type: |
Register |
|
Format: |
AT [cmds] S35=n [cmds] |
|
Description: |
Selects the source for the receive clock. |
|
Command |
Function |
|
í S34=0 |
Receive clock generated from received signal. |
|
S34=1 |
Receive clock generated from external source. |
|
CLOCK SOURCE - TRANSMIT | |
|
Type: |
Register |
|
Format: |
AT [cmds] S34=n [cmds] |
|
Description: |
Selects the source for the transmit clock. |
|
Command |
Function |
|
í S34=0 |
Transmit clock generated from received signal. |
|
S34=1 |
Transmit clock generated from external source. |
|
COMMUNICATIONS MODE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Qn [cmds] |
|
Description: |
Selects whether the TA will operate in synchronous or asynchronous mode. |
|
Command |
Function |
|
&Q0 |
TA will operate in asynchronous mode. |
|
í &Q1 |
TA will operate in synchronous mode. |
|
COMMUNICATIONS MODE | |
|
Type: |
Register |
|
Format: |
AT [cmds] S27=n [cmds] |
|
Description: |
Selects whether the TA will operate in synchronous or asynchronous mode. |
|
Command |
Function |
|
S27=0 |
TA will operate in asynchronous mode. |
|
í S27=1 |
TA will operate in synchronous mode. |
|
DATA FORMAT | |||||
|
Format: |
AT [cmds] S23=n [cmds] | ||||
|
Default: |
0 | ||||
|
Range: |
0 - 14 | ||||
|
Description: |
Controls the number of data and stop bits. | ||||
|
Bit |
Value |
Function | |||
|
0 |
0 |
Not used. | |||
|
1 |
í 01 |
One stop bit. Two stop bits. | |||
|
3, 2 |
í 0001 10 11 |
Eight data bits. Seven data bits. Six data bits. Five data bits. | |||
|
DATA TYPE - B1 CHANNEL | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] \C1=n [cmds] |
|
Description: |
Sets the format for data being sent over the B1 channel. |
|
Command |
Function |
|
\C1=0 |
B1 channel carries standard data. |
|
í \C1=1 |
B1 channel carries circuit-switched data. |
|
DATA TYPE - B2 CHANNEL | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] \C2=n [cmds] |
|
Description: |
Sets the format for data being sent over the B2 channel. |
|
Command |
Function |
|
\C2=0 |
B2 channel carries standard data. |
|
í \C2=1 |
B2 channel carries circuit-switched data. |
|
DIRECTORY NUMBER 1 | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] !N1= <#> [cmds] |
|
Description: |
Sets the first Directory Number to the number indicated. |
|
DIRECTORY NUMBER 2 | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] !N2= <#> [cmds] |
|
Description: |
Sets the second Directory Number to the number indicated. |
|
DISPLAY CONFIGURATION | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] &Vn [cmds] |
|
Description: |
Displays the indicated part of the TA's configuration. |
|
Command |
Function |
|
&V0 |
Displays the command setting for the port. |
|
&V1 |
Displays all stored telephone numbers. |
|
DISPLAY INFORMATION | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] In [cmds] |
|
Description: |
Displays information requested about the TA. |
|
Command |
Function |
|
I0 |
Displays product identification code. |
|
I1 |
Displays ROM checksum. |
|
I2 |
Tests and displays ROM checksum result. |
|
I3 |
Displays firmware part number, revision, and checksum. |
|
DTR SIGNAL | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] \Dn [cmds] |
|
Description: |
Controls the operation of the DTR signal. |
|
Command |
Function |
|
í \D0 |
DTR normal. |
|
\D1 |
DTR forced high. |
|
DTR SIGNAL | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] S33=n [cmds] |
|
Description: |
Controls the operation of the DTR signal. |
|
Command |
Function |
|
í S33=0 |
DTR normal. |
|
S33=1 |
DTR forced high. |
|
FRONT PANEL CONTROLS | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] @Fn [cmds] |
|
Description: |
Select whether the front panel controls are operative. |
|
Command |
Function |
|
@F0 |
Front panel controls disabled. |
|
í @F1 |
Front panel controls enabled. |
|
LINE SPEED - B1 CHANNEL | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] \B1=n [cmds] |
|
Description: |
Sets the line speed of the B1 channel. |
|
Command |
Function |
|
\B1=0 |
B1 channel speed set to 56Kbps. |
|
í \B1=1 |
B1 channel speed set to 64Kbps. |
|
LINE SPEED - B2 CHANNEL | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] \B2=n [cmds] |
|
Description: |
Sets the line speed of the B2 channel. |
|
Command |
Function |
|
\B2=0 |
B2 channel speed set to 56Kbps. |
|
í \B2=1 |
B2 channel speed set to 64Kbps. |
|
LOCAL SERIAL PORT SPEED | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] Fn [cmds] |
|
Description: |
Sets the speed of the local serial port. |
|
Command |
Function |
|
F0 |
Serial port speed set to 300bps. |
|
F1 |
Serial port speed set to 600bps. |
|
F2 |
Serial port speed set to 1200bps. |
|
F3 |
Serial port speed set to 2400bps. |
|
F4 |
Serial port speed set to 4800bps. |
|
F5 |
Serial port speed set to 7200bps. |
|
F6 |
Serial port speed set to 9600bps. |
|
F7 |
Serial port speed set to 14.4Kbps. |
|
F8 |
Serial port speed set to 19.2Kbps. |
|
F9 |
Serial port speed set to 38.4Kbps. |
|
F12 |
Serial port speed set to 57.6Kbps. |
|
LOCAL SERIAL PORT SPEED | |
|
Type: |
Register |
|
S29=ormat: |
AT [cmds] S29=n [cmds] |
|
Description: |
Sets the speed of the local serial port. |
|
Command |
S29=unction |
|
S29=0 |
Serial port speed set to 300bps. |
|
S29=1 |
Serial port speed set to 600bps. |
|
S29=2 |
Serial port speed set to 1200bps. |
|
S29=3 |
Serial port speed set to 2400bps. |
|
S29=4 |
Serial port speed set to 4800bps. |
|
S29=5 |
Serial port speed set to 7200bps. |
|
S29=6 |
Serial port speed set to 9600bps. |
|
S29=7 |
Serial port speed set to 14.4Kbps. |
|
S29=8 |
Serial port speed set to 19.2Kbps. |
|
S29=9 |
Serial port speed set to 38.4Kbps. |
|
S29=12 |
Serial port speed set to 57.6Kbps. |
|
NETWORK MANAGEMENT ADDRESS | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] @CMSA=n [cmds] |
|
Default: |
Unidentified |
|
Range: |
1 - 255 |
|
Unit: |
N/A |
|
Description: |
Sets the CMS network management address for the TA. |
|
NETWORK MANAGEMENT SPEED | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] @CMSFn [cmds] |
|
Description: |
Sets the speed of the CMS network management port. |
|
Command |
Function |
|
í @CMSF0 |
Set network management port speed to 75bps. |
|
@CMSF1 |
Set network management port speed to 300bps. |
|
@CMSF2 |
Set network management port speed to 1200bps. |
|
@CMSF3 |
Set network management port speed to 2400bps. |
|
@CMSF4 |
Set network management port speed to 4800bps. |
|
@CMSF5 |
Set network management port speed to 9600bps. |
|
@CMSF6 |
Set network management port speed to 19.2Kbps. |
|
NETWORK MANAGEMENT TYPE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] @CMSNn [cmds] |
|
Description: |
Sets where the TA is in respect to the CMS network management unit. |
|
Command |
Function |
|
@CMSN0 |
TA is local to the network management unit. |
|
í @CMSN1 |
TA is remote from the network management unit. |
|
POWER FAIL ALARM DELAY | |
|
Type: |
Register |
|
Format: |
AT [cmds] S30=n [cmds] |
|
Default: |
10 |
|
Range: |
0 - 127 |
|
Unit: |
1 second |
|
Description: |
Sets the amount of time the TA waits after the DTE loses power before generating an alarm condition. |
|
PROTOCOL - RATE ADAPTATION | |
|
Type: |
Register |
|
Format: |
AT [cmds] S28=n [cmds] |
|
Description: |
Selects the rate adaptation protocol the TA will use. |
|
Command |
Function |
|
í S28=0 |
TA will use V.120 for rate adaptation. |
|
S28=1 |
TA will use T-Link for rate adaptation. |
|
REDIAL DELAY | |
|
Type: |
Register |
|
Format: |
AT [cmds] S44=n [cmds] |
|
Default: |
30 |
|
Range: |
0 - 127 |
|
Unit: |
.5 second |
|
Description: |
Sets the amount of time the TA will wait before redialing a call that did not connect. |
|
RESULT CODES | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] Qn [cmds] |
|
Description: |
Enables TA to send result codes to the DTE. |
|
Command |
Function |
|
í Q0 |
Result codes enabled. |
|
Q1 |
Result codes disabled. |
|
Q2 |
Result codes enabled in originate mode only. |
|
RTS SIGNAL | |
|
Type: |
Register |
|
Format: |
AT [cmds] S32=n [cmds] |
|
Description: |
Controls the operation of the RTS signal. |
|
Command |
Function |
|
S32=0 |
RTS forced high. |
|
í S32=1 |
RTS normal. |
|
SECURITY | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] @Cn [cmds] |
|
Description: |
Selects what type of security will be used for dial-in. |
|
Command |
Function |
|
í @C0 |
Security disabled. |
|
@C1 |
Caller ID security enabled. |
|
@C2 |
Password security enabled. |
|
SECURITY | |
|
Type: |
Register |
|
Format: |
AT [cmds] S42=n [cmds] |
|
Description: |
Selects what type of security will be used for dial-in. |
|
Command |
Function |
|
í S42=0 |
Security disabled. |
|
S42=1 |
Caller ID security enabled. |
|
S42=2 |
Password security enabled. |
|
SPID 1 | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] \SP1= <#> [cmds] |
|
Description: |
Sets the first Service Profile ID to the number indicated. |
|
SPID 2 | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] \SP2= <#> [cmds] |
|
Description: |
Sets the second Service Profile ID to the number indicated. |
|
SPID DISABLE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] \SP0 [cmds] |
|
Description: |
Disables both Service Profile ID's. |
|
SWITCH TYPE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] \Sn [cmds] |
|
Description: |
Sets the type of switch the TA is connected to. |
|
Command |
Function |
|
\S0 |
TA is connected to AT&T 5ESS switch. |
|
\S1 |
TA is connected to DMS-100 switch. |
|
\S2 |
TA is connected to National NI-1 switch. |
Proprietary V.25bis Command Set
|
REQUEST LISTED NUMBERS | |
|
Type: |
Immediate |
|
Format: |
RLN |
|
Description: |
Requests the modem to return the list of stored numbers. |
